Luggage Compartment Door (for Sedan)
>>
Components
Components
ENGINE
HOOD
/ DOOR: LUGGAGE COMPARTMENT DOOR (for Sedan): COMPONENTS
COMPONENTS

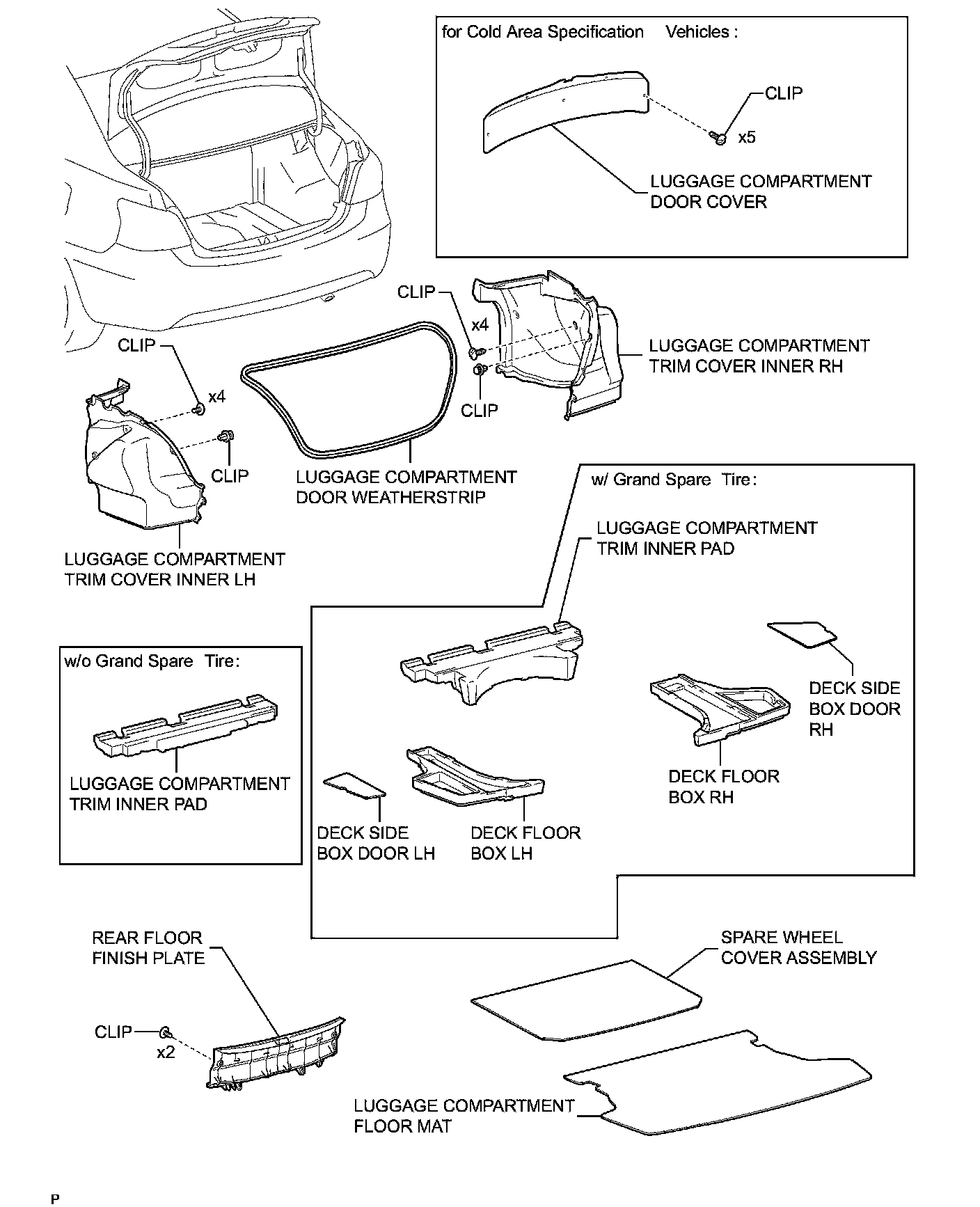

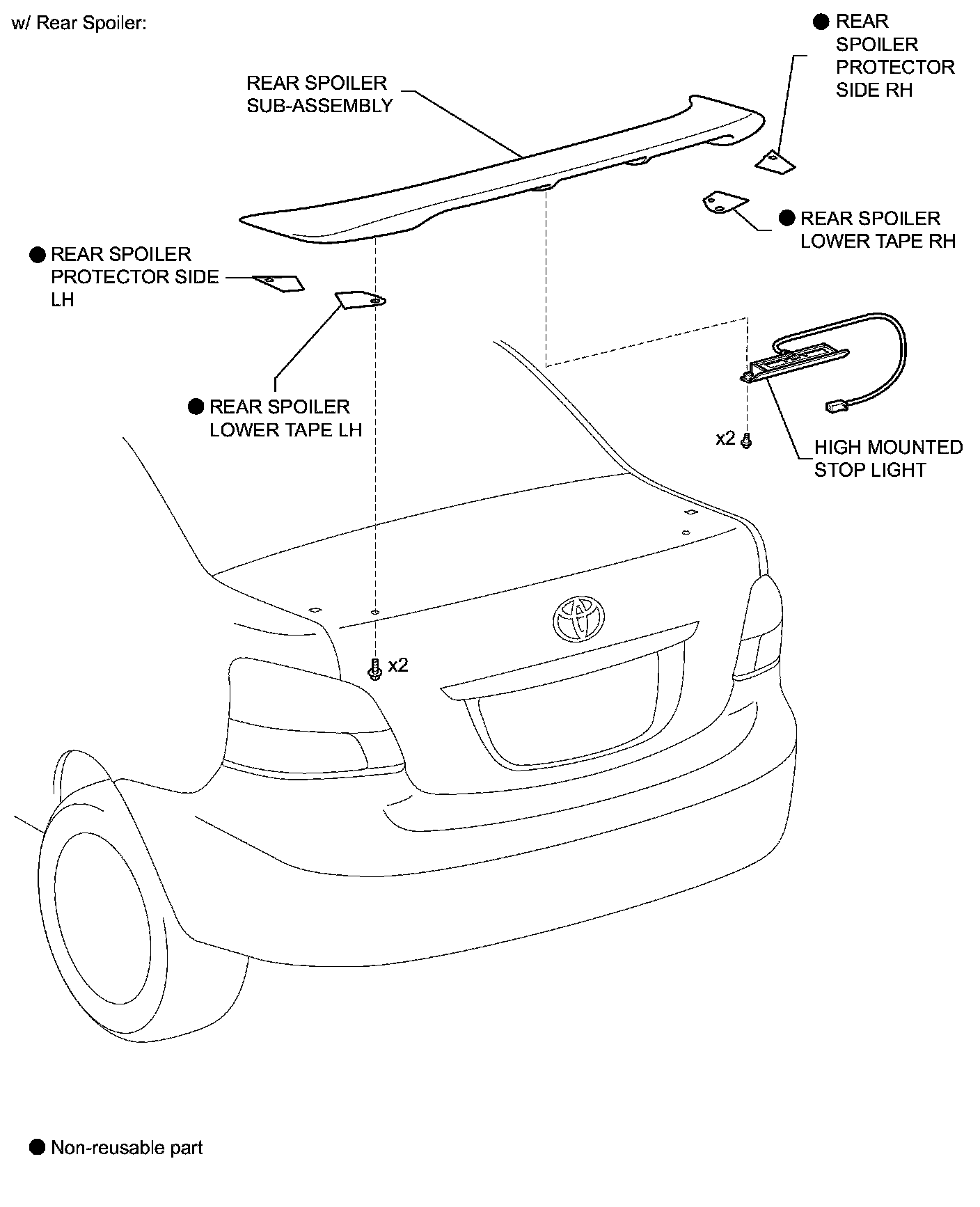

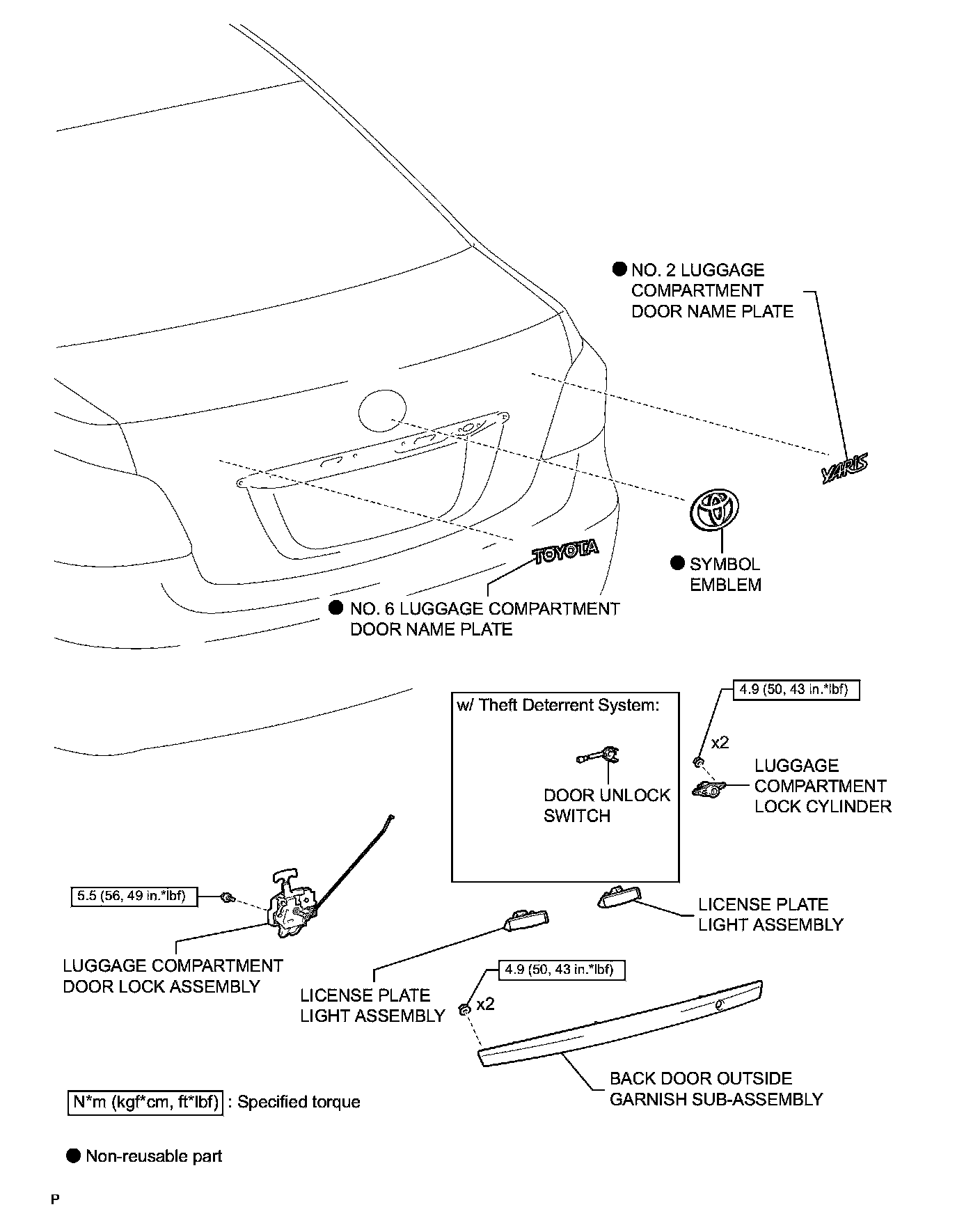

ILLUSTRATION
