Removal

ENGINE HOOD / DOOR: BACK DOOR SUPPORT (for Hatchback): REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.





1. REMOVE BACK DOOR STAY ASSEMBLY

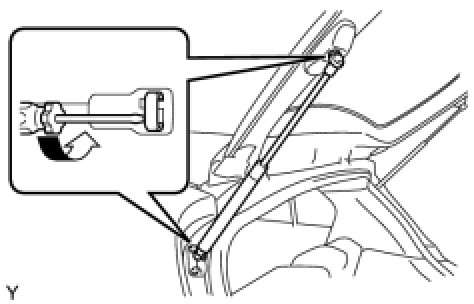

(a) Using a screwdriver with its wrapped in protective tape, remove the 2 stop rings and stay.
NOTICE:
- Do not touch the rod of the stay with gloves to avoid fibers from adhering.
- When foreign matter adheres to the rod, it prevents the rod from moving smoothly and reduces its holding power.
HINT: Support the back door by hand while removing the door stay.
