EXTERIOR: NAME PLATE (for Sedan): INSTALLATION

INSTALLATION

1. INSTALL SYMBOL EMBLEM





(a) Clean the attachment surface.
(1) Using an infrared light, heat the double-sided adhesive tape remaining on the luggage compartment door panel.
HINT: Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.
(2) Using a shop rag or piece of cloth, rub the remaining double-sided adhesive tape off the back door panel while it is hot from the infrared light.
NOTE: Installing the symbol while any double-sided adhesive tape remains on the luggage compartment door panel may cause adhesion failure. Therefore, completely remove the double-sided adhesive tape.
(3) Using a non-residue solvent, clean the attachment surface.

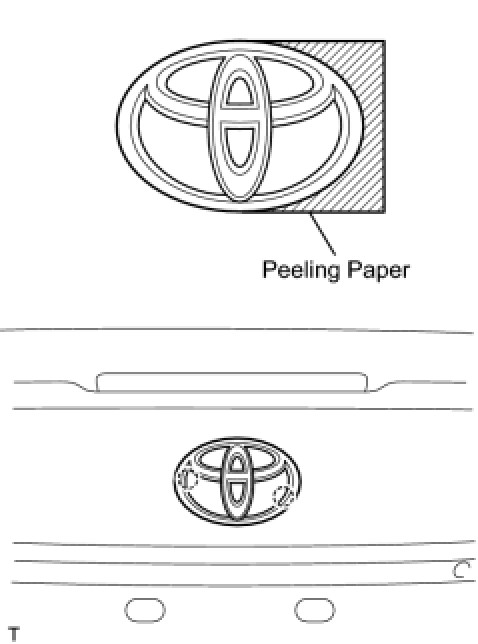

(b) Align the 2 pins and install a new symbol emblem.
NOTE: Install the symbol emblem in an environment where the ambient temperature is over 20°C (68°F). If it is below 20°C (68°F), using an infrared light, heat the luggage compartment door panel and the symbol emblem up to 20 to 30°C (68 to 86°F) and install the symbol emblem.

2. INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE





(a) Clean the attachment surface.
(1) Using an infrared light, heat the double-sided adhesive tape remaining on the luggage compartment door panel.
HINT: Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.
(2) Using a shop rag or piece of cloth, rub the remaining double-sided adhesive tape off the luggage compartment door panel while it is hot from the infrared light.
NOTE: Installing the No. 2 luggage compartment door name plate while any double-sided adhesive tape remains on the luggage compartment door panel may cause adhesion failure. Therefore, completely remove the double-sided adhesive tape.
(3) Using a non-residue solvent, clean the attachment surface.

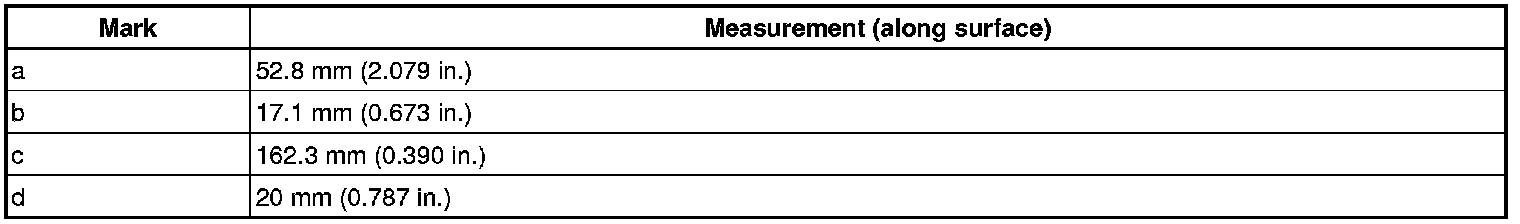

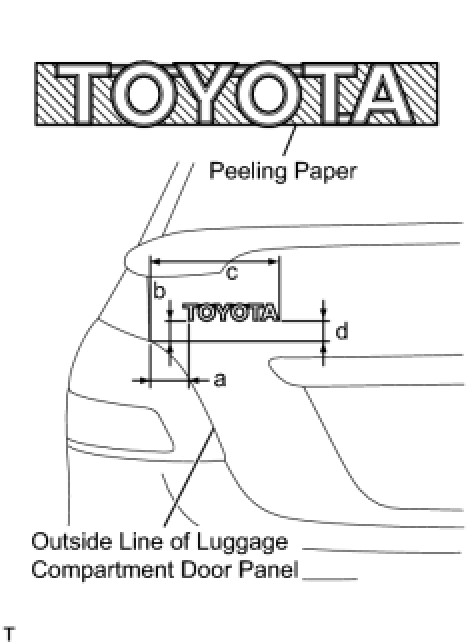

(b) Install a new No. 2 luggage compartment door name plate as shown in the illustration.
Installation position:





NOTE: Install the No. 2 luggage compartment door name plate in an environment where the ambient temperature is over 20°C (68°F). If it is below 20°C (68°F), using an infrared light, heat the luggage compartment door panel and the No. 2 luggage compartment door name plate up to 20 to 30°C (68 to 86°F) and install the No. 2 luggage compartment door name plate.

3. INSTALL NO. 6 LUGGAGE COMPARTMENT DOOR NAME PLATE





(a) Clean the attachment surface.
(1) Using an infrared light, heat the double-sided adhesive tape remaining on the luggage compartment door panel.
HINT: Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.
(2) Using a shop rag or piece of cloth, rub the remaining double-sided adhesive tape off the luggage compartment door panel while it is hot from the infrared light.
NOTE: Installing the No. 6 luggage compartment door name plate while any double-sided adhesive tape remains on the luggage compartment door panel may cause adhesion failure. Therefore, completely remove the double-sided adhesive tape.
(3) Using a non-residue solvent, clean the attachment surface.

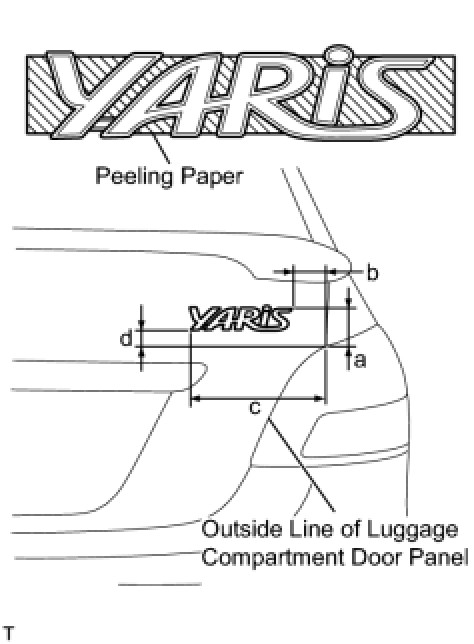

(b) Install a new No. 6 luggage compartment door name plate as shown in the illustration.
Installation position:





NOTE: Install the No. 6 luggage compartment door name plate in an environment where the ambient temperature is over 20°C (68°F). If it is below 20°C (68°F), using an infrared light, heat the luggage compartment door panel and the No. 6 luggage compartment door name plate up to 20 to 30°C (68 to 86°F) and install the No. 6 luggage compartment door name plate.

4. INSTALL RADIATOR GRILLE EMBLEM





(a) Engage the 4 claws and install the radiator grille emblem.

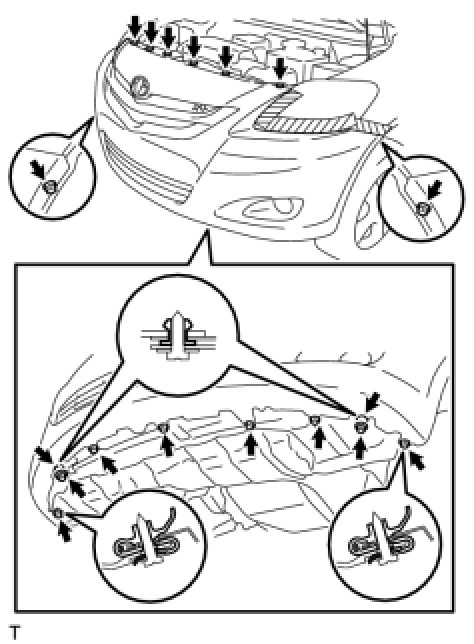

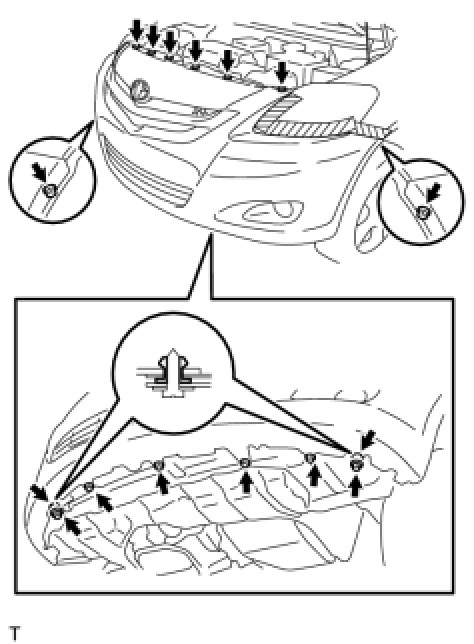

5. INSTALL FRONT BUMPER COVER





(a) w/ Fog Light:
(1) Connect the 2 fog light connectors.
(2) Engage the 6 claws and install the front bumper cover.





(b) w/o Fog Light:
(1) Engage the 6 claws and install the front bumper cover.





(c) w/ Front Spoiler:
(1) Install the 6 clips.
(2) Install the 2 screw grommets.
(3) Tighten the 5 screws and the 3 bolts.





(d) w/o Front Spoiler:
(1) Install the 6 clips.
(2) Install the 2 screw grommets.
(3) Tighten the 7 screw and the 3 bolts.





(e) Remove the protective tape.
6. INSTALL FRONT SPOILER COVER (w/ Small Front Spoiler) Installation
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Fog Light)
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
