INSTRUMENT PANEL: REAR CONSOLE BOX (for Sedan): INSTALLATION

INSTALLATION

1. INSTALL REAR CONSOLE BOX ASSEMBLY





(a) Engage the 4 claws and install the rear console box.
(b) Install the 2 bolts and 2 screws.
(c) Connect the clamp.
2. INSTALL CONSOLE BOX CARPET





(a) Install the console box carpet.
3. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY





(a) Connect the connector.
(b) Engage the 3 clips and 3 claws and install the console upper rear panel.
4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY





(a) Engage the 5 clips and the claw and install the upper console panel.

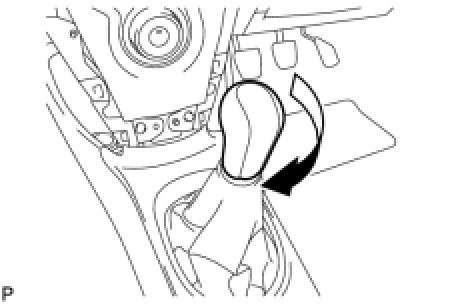

5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)





(a) Install the shift lever knob.
6. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER Installation
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
