Reassembly

INSTRUMENT PANEL: REAR CONSOLE BOX (for Sedan): REASSEMBLY

REASSEMBLY

1. INSTALL CONSOLE COMPARTMENT DOOR CUSHION





(a) for Console compartment door:

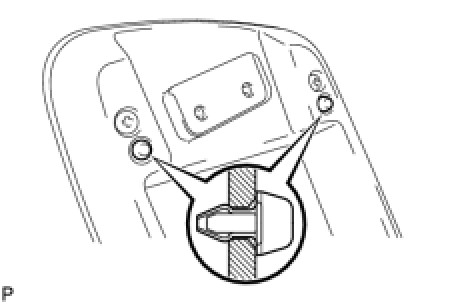

(1) Install the console compartment door cushion.





(b) for Console rear end panel:
(1) Install the console compartment door cushion.

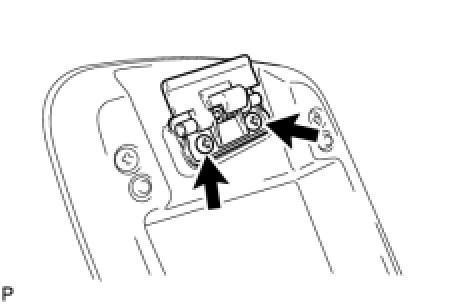

2. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY
(a) Install the console compartment door lock with the 2 screws.

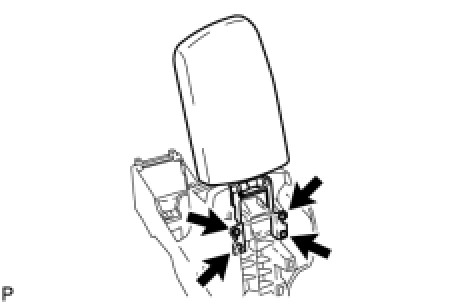

3. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
(a) Install the console compartment door lock with the 4 screws.

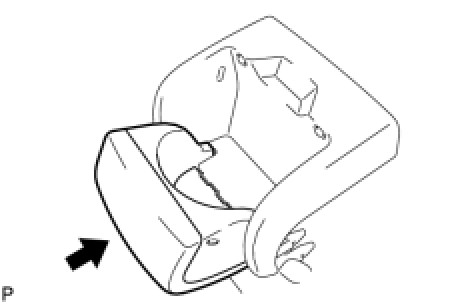

4. INSTALL CONSOLE BOX CUP HOLDER
(a) Engage the hinge portion of the cup holder and install the cup holder.

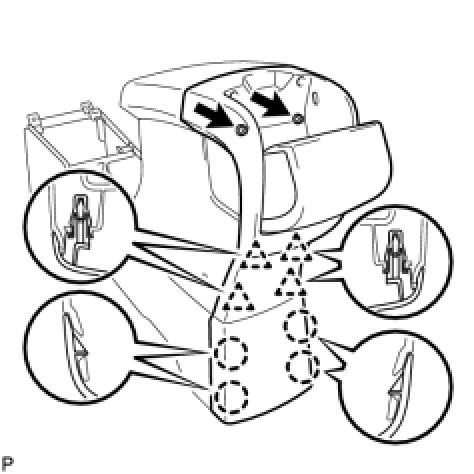

5. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
(a) Engage the 4 claws and 4 clips.
(b) Install the console rear end panel with the 2 screws.
