Removal

EXTERIOR: FRONT PILLAR UPPER COVER (for Hatchback): REMOVAL

REMOVAL
HINT: The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. REMOVE FRONT PILLAR UPPER COVER





(a) Apply protective tape to the body panel in the area around the front pillar upper cover.

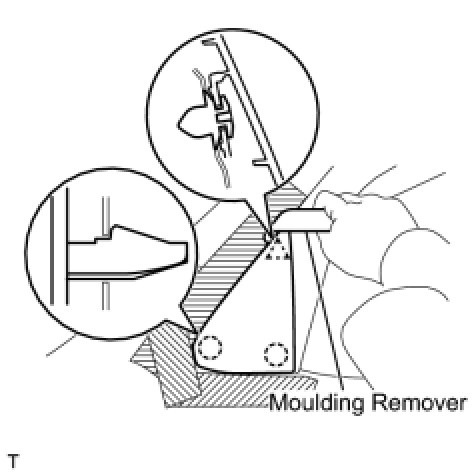

(b) Using a moulding remover, disengage the 2 claws and the clip and remove the front pillar upper cover.
