Installation

EXTERIOR: FRONT PILLAR UPPER COVER (for Sedan): INSTALLATION

INSTALLATION
HINT: The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. INSTALL FRONT PILLAR UPPER COVER

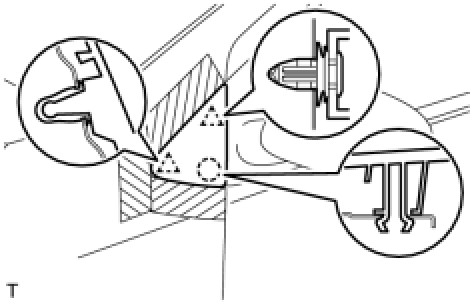

(a) Engage the 2 clips and the claw and install the front pillar upper cover.





(b) Remove the protective tape.
