Removal

EXTERIOR: FRONT PILLAR UPPER COVER (for Sedan): REMOVAL

REMOVAL
HINT: The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. REMOVE FRONT PILLAR UPPER COVER

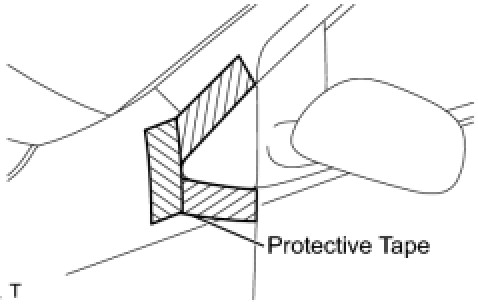

(a) Apply protective tape, as shown in the illustration.

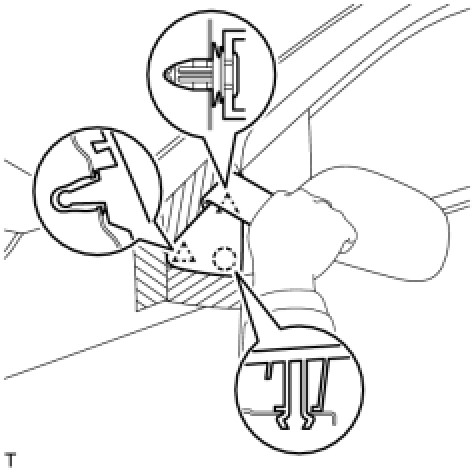

(b) Using a moulding remover, disengage the 2 clips and the claw and remove the front pillar upper cover.
