Installation

DOOR LOCK: DOOR CONTROL TRANSMITTER MODULE: INSTALLATION

INSTALLATION

1. INSTALL DOOR CONTROL TRANSMITTER MODULE
(a) Install the door control transmitter module.




(1) Install the door control transmitter module into the transmitter housing case.

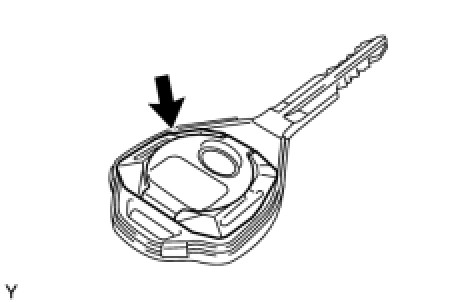

(2) Install the transmitter housing cover onto the transmitter housing case securely.
