Power Locks: Locations
DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: PARTS LOCATION

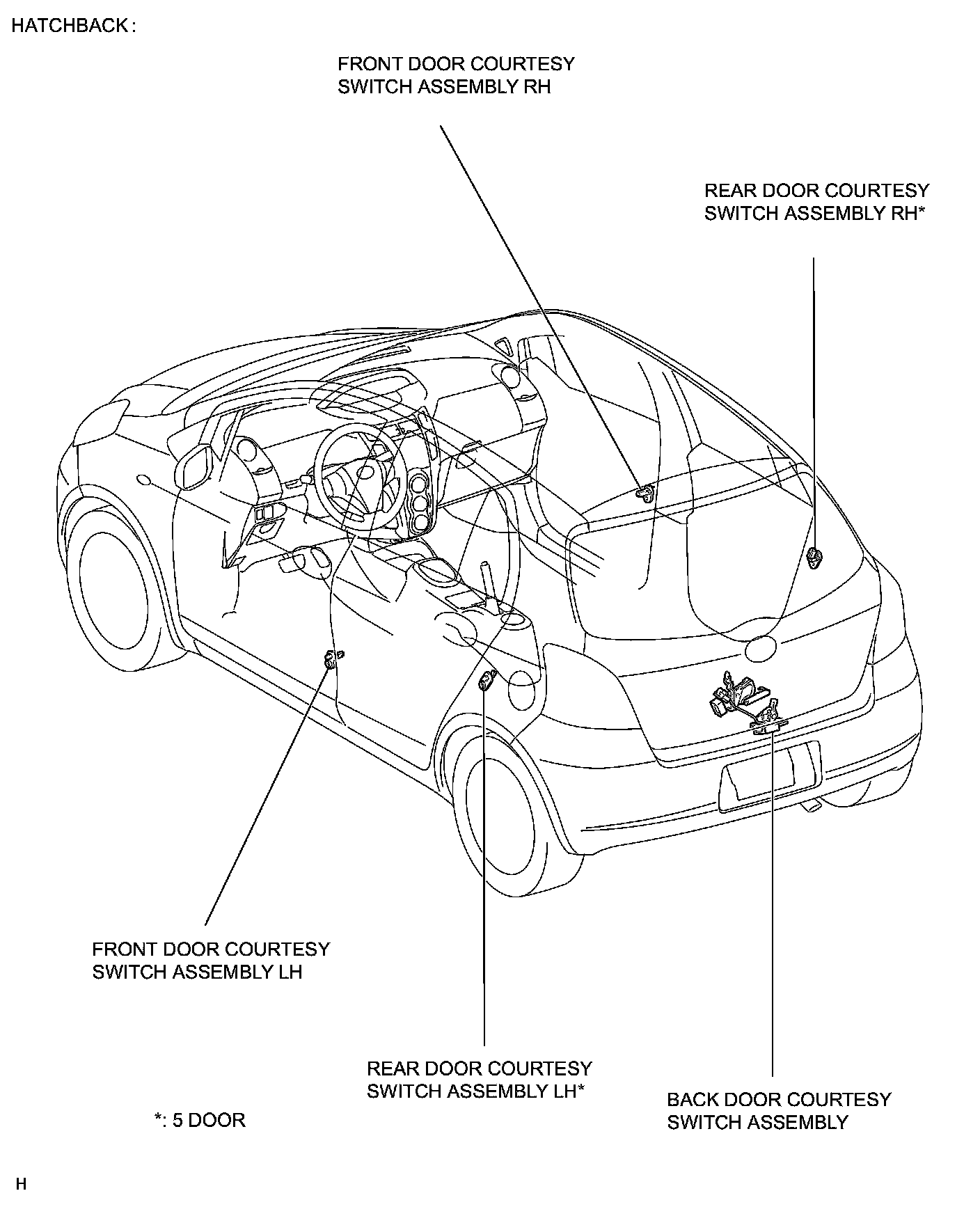

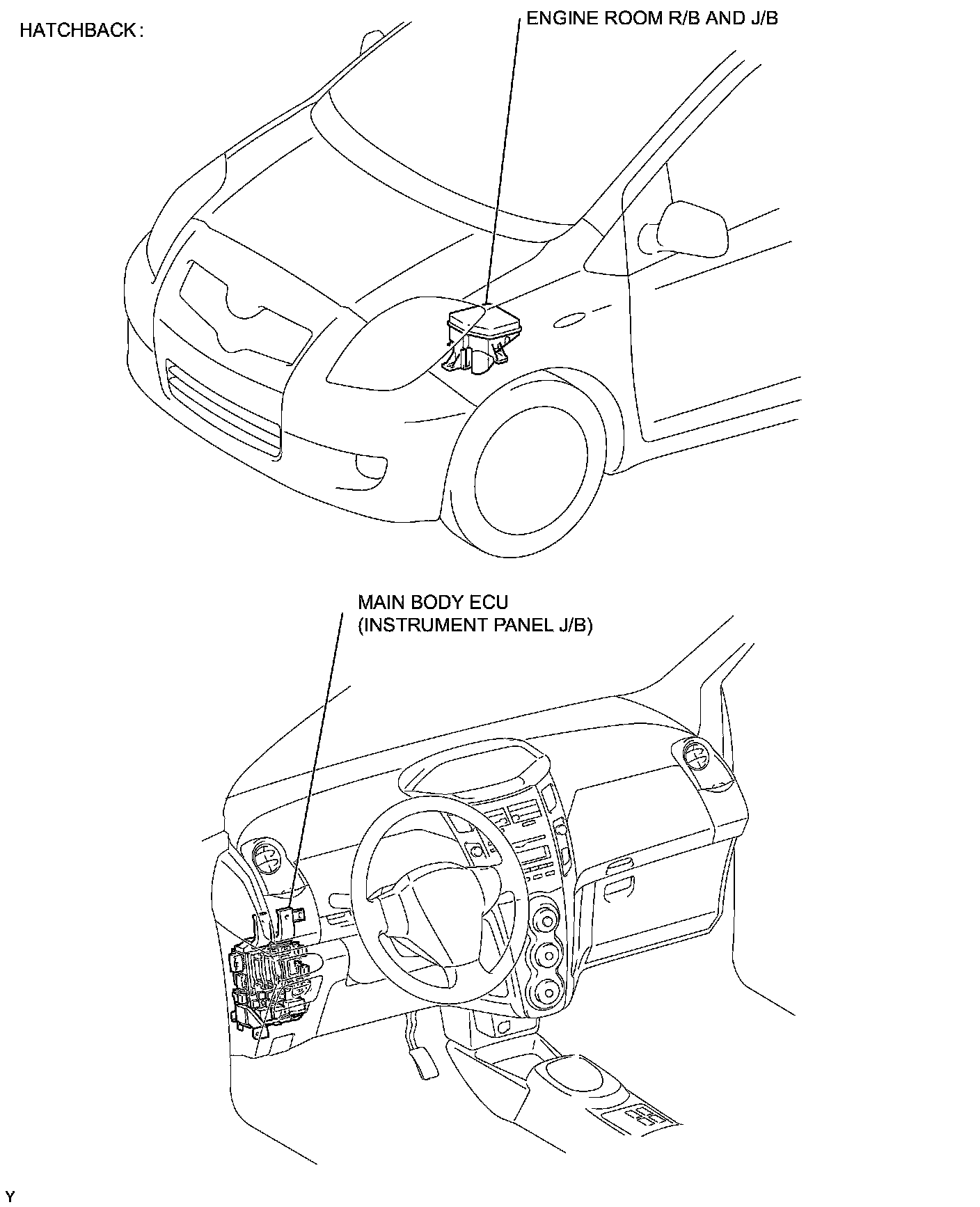

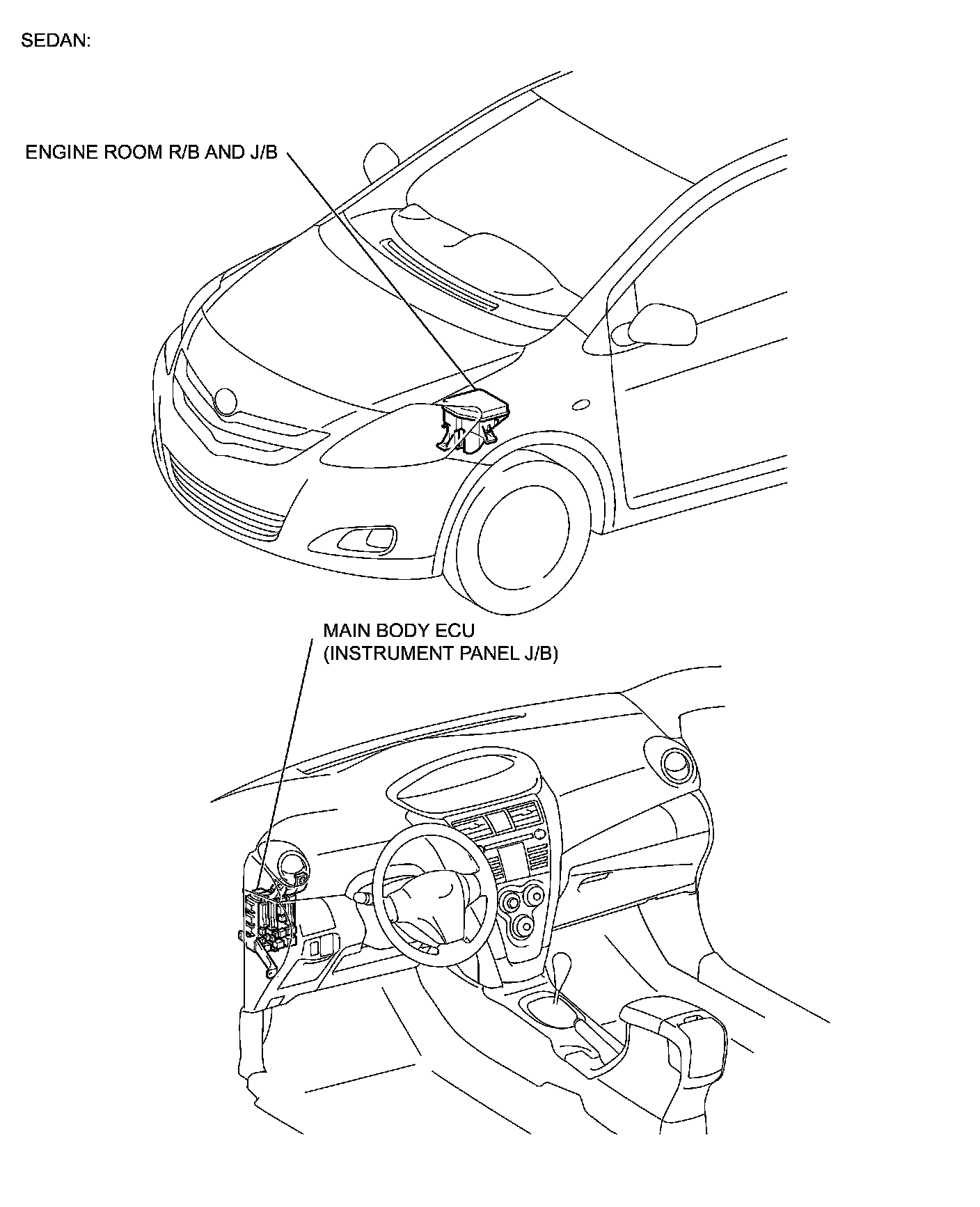

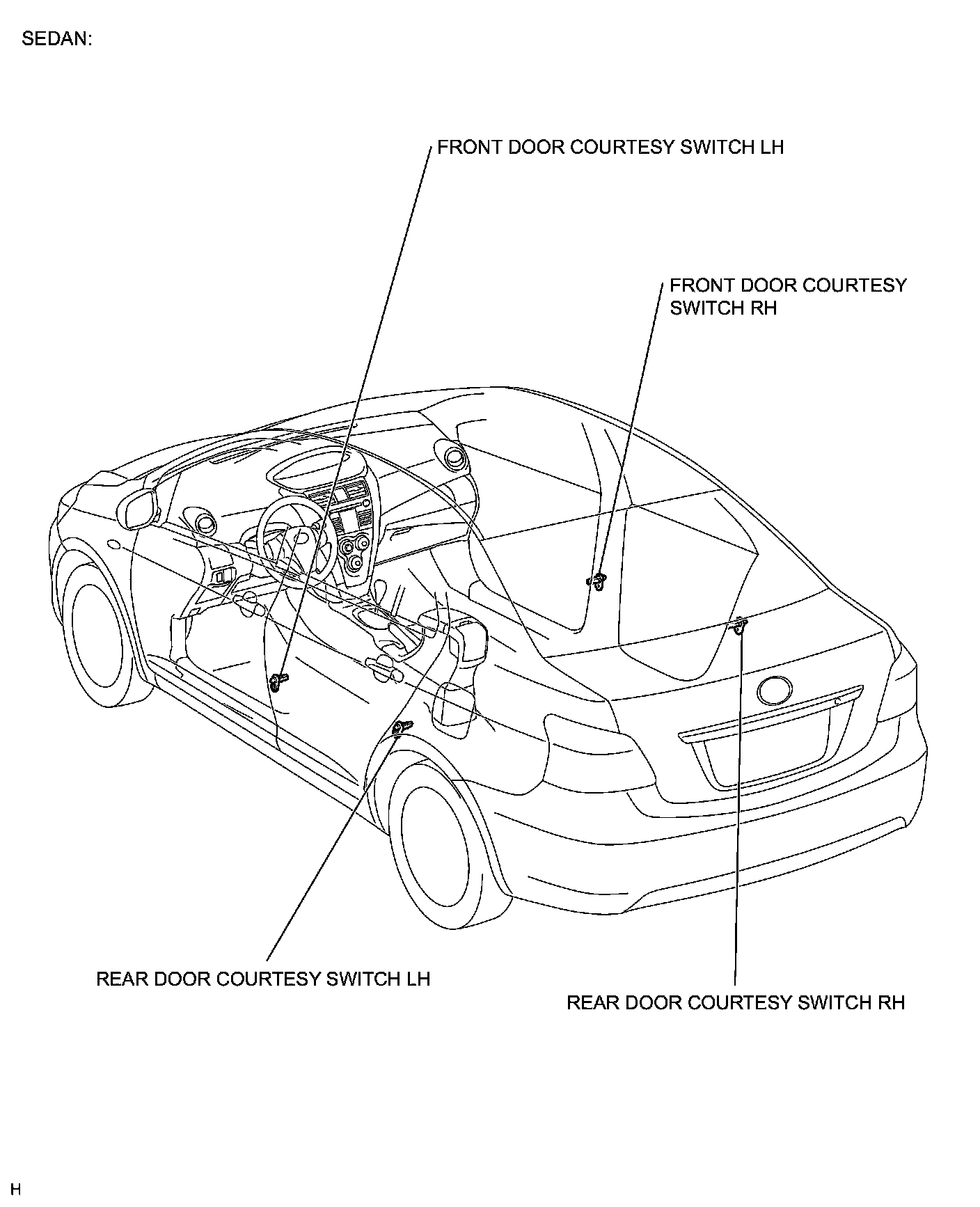

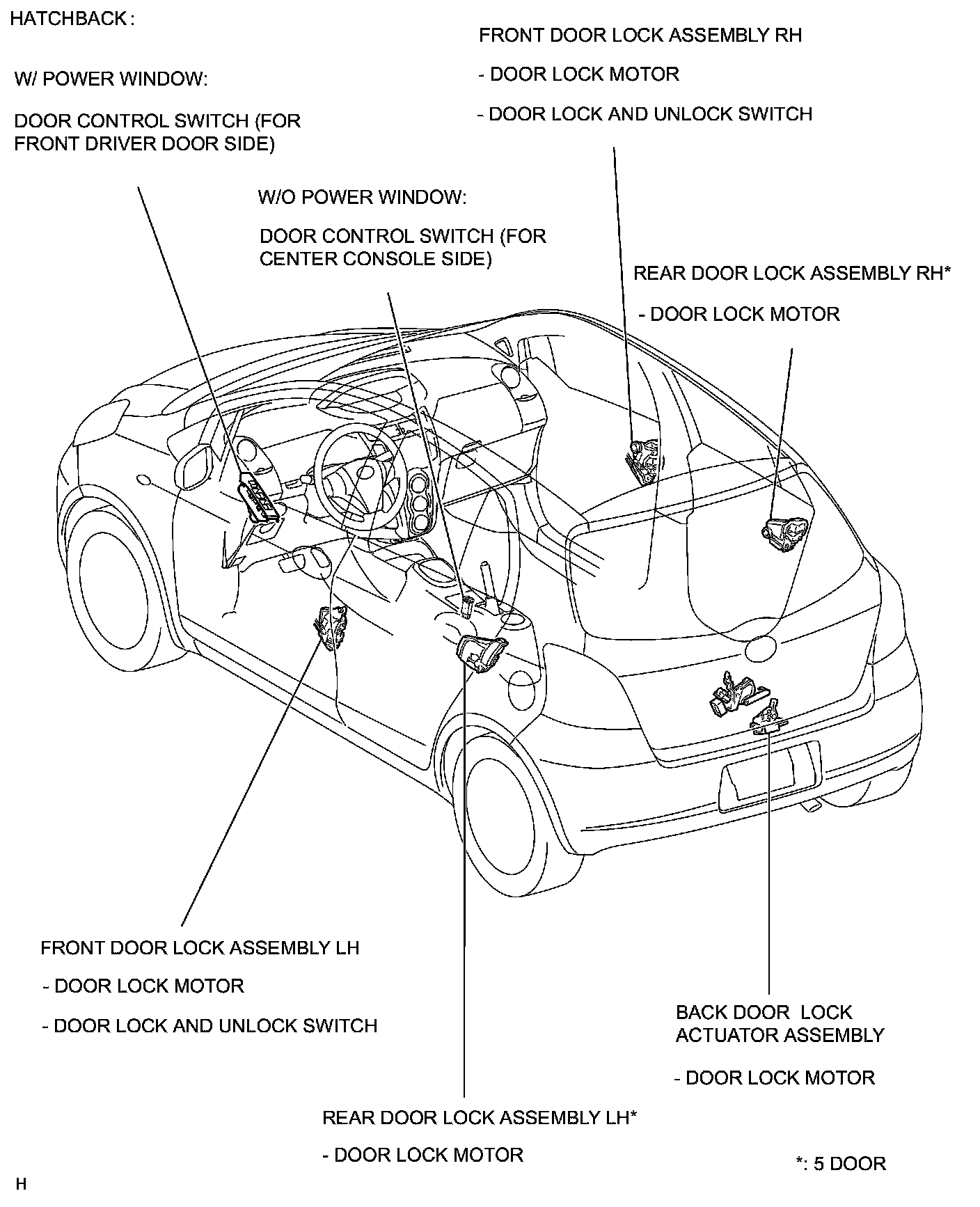

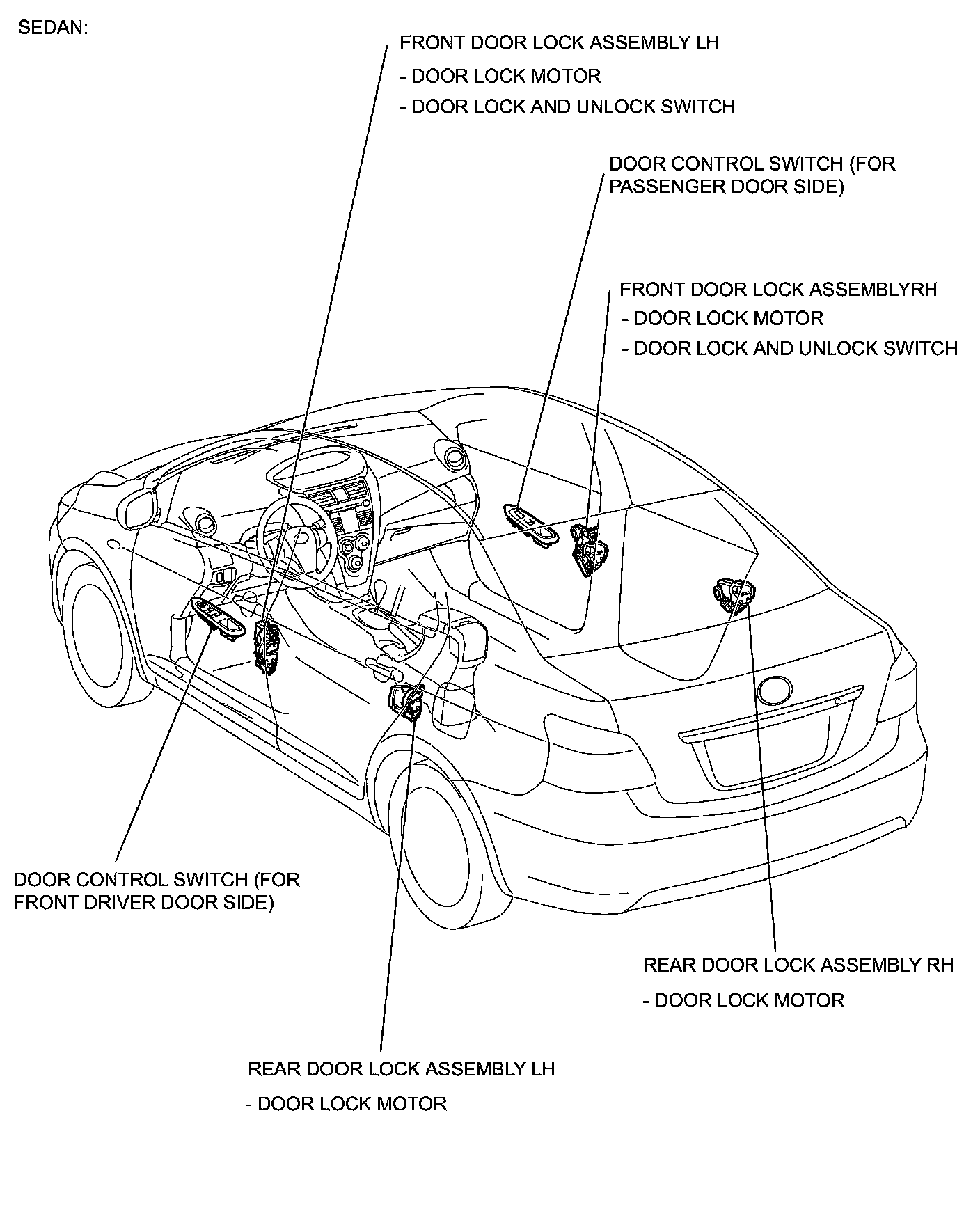

PARTS LOCATION
ILLUSTRATION
