Front Door Lock (for Sedan)

DOOR LOCK: FRONT DOOR LOCK (for Sedan): INSPECTION

INSPECTION

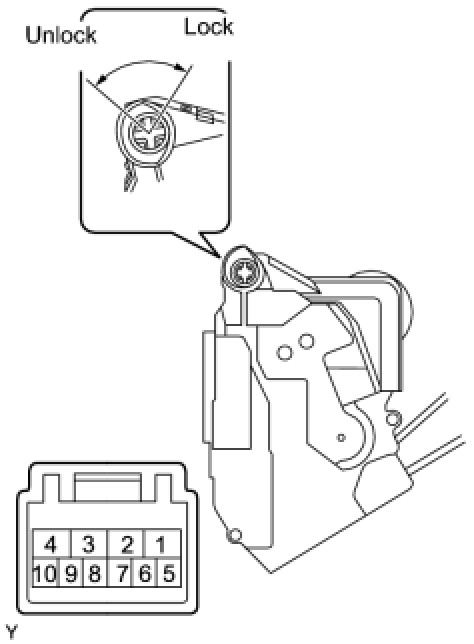

1. INSPECT FRONT DOOR LOCK ASSEMBLY LH





(a) w/ Power door lock:
Check the operation.

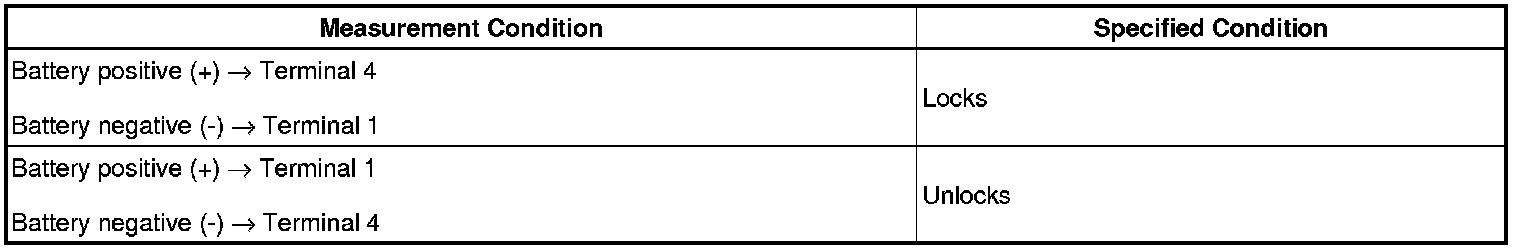

(1) Apply battery voltage to the front door lock and check the operation of the front door lock motor.
Standard:






If the result is not as specified, replace the front door lock.

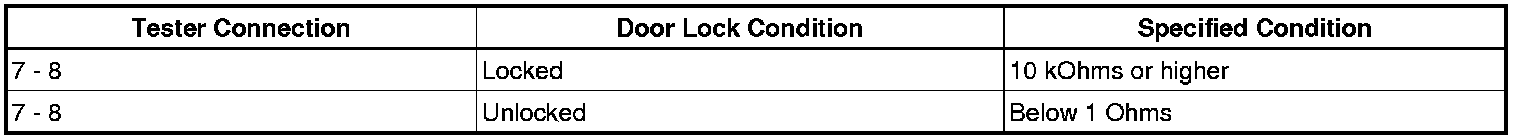

(b) Check the resistance of the unlock detection switch.
(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.
Standard Resistance:






If the result is not as specified, replace the front door lock.

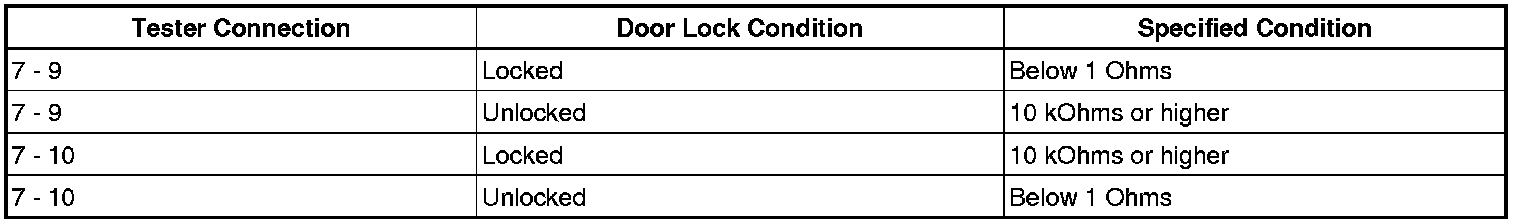

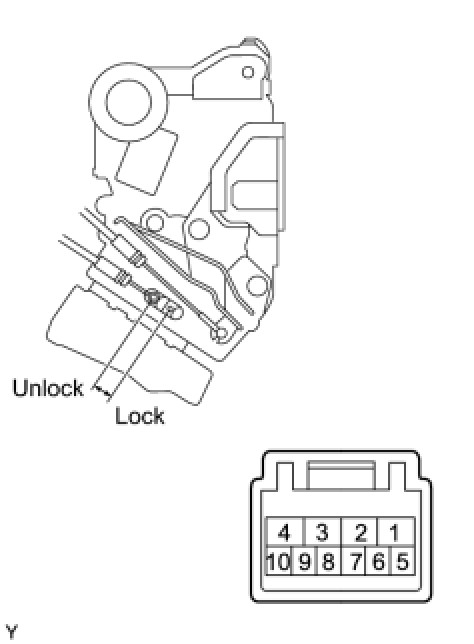

(c) Check the resistance of the door lock and unlock switch.
(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.
Standard Resistance:






If the result is not as specified, replace the front door lock.

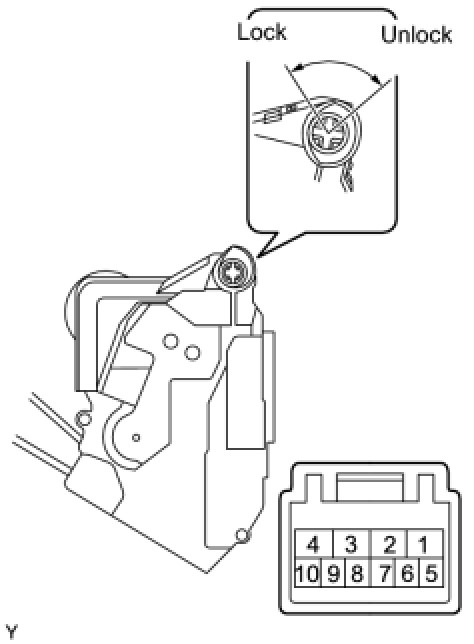

2. INSPECT FRONT DOOR LOCK ASSEMBLY RH





(a) w/ Power door lock:
Check the operation.
(1) Apply battery voltage to the front door lock and check the operation of the front door lock motor.
Standard:






If the result is not as specified, replace the front door lock.
(b) Check the resistance of the unlock detection switch.
(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.
Standard Resistance:






If the result is not as specified, replace the front door lock.





(c) Check the resistance of door lock and unlock switch.
(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.
Standard Resistance:






If the result is not as specified, replace the front door lock.
