Rear Door Lock (for Hatchback)

DOOR LOCK: REAR DOOR LOCK (for Hatchback): INSPECTION

INSPECTION





1. INSPECT REAR DOOR LOCK ASSEMBLY LH
(a) Check the operation.
(1) Apply battery voltage to the rear door lock and check the operation of the door lock motor.

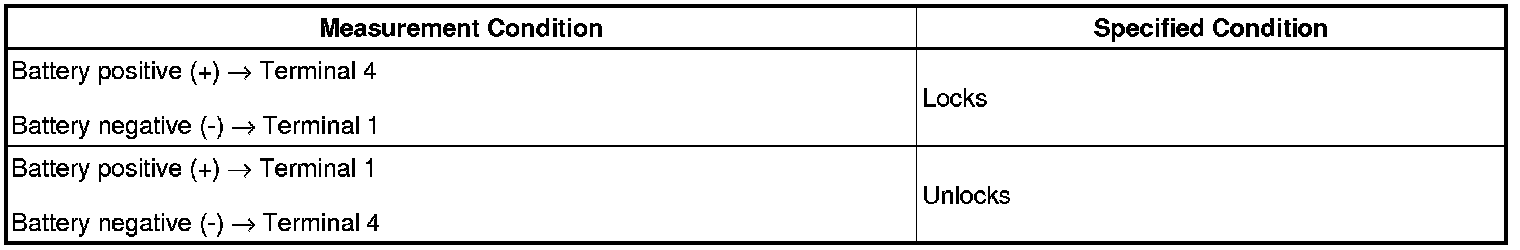

Standard:






If the result is not as specified, replace the rear door lock.





2. INSPECT REAR DOOR LOCK ASSEMBLY RH
(a) Check the operation.
(1) Apply battery voltage to the rear door lock and check the operation of the door lock motor.
Standard:






If the result is not as specified, replace the rear door lock.
