Removal

DOOR LOCK: DOOR CONTROL SWITCH (for Hatchback Center Console Side): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE CONSOLE BOX REAR COVER Removal





3. REMOVE DOOR CONTROL SWITCH

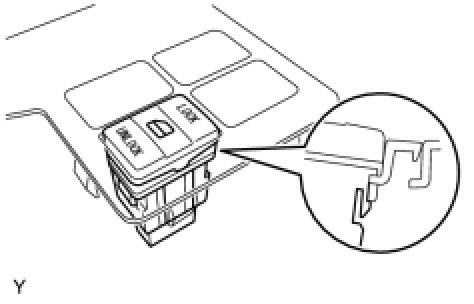

(a) Disengage the 2 claws and remove the door control switch.
