Mirrors: Description and Operation

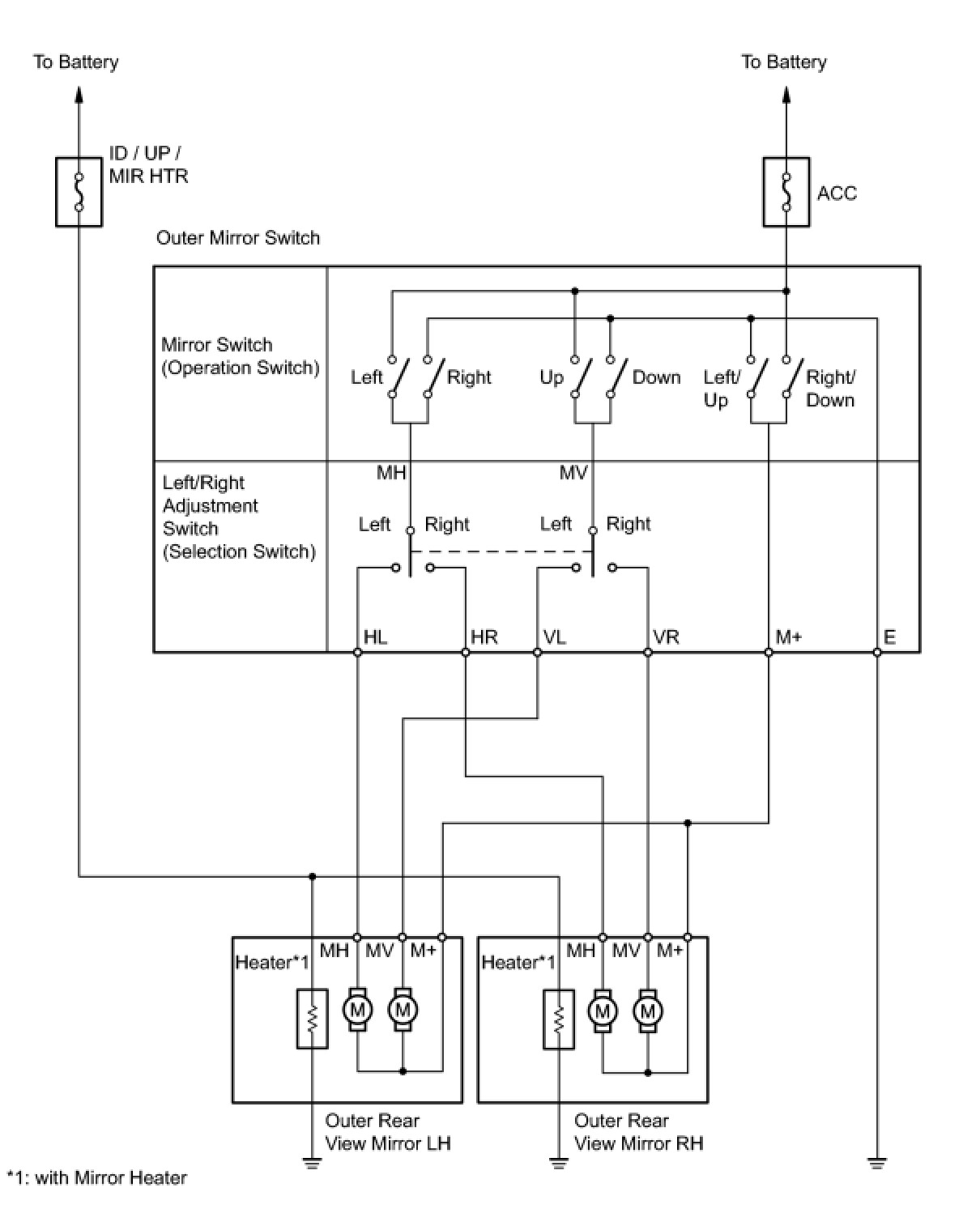

MIRROR: POWER MIRROR CONTROL SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
