Removal

MIRROR: OUTER MIRROR SWITCH (for Hatchback): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INSTRUMENT PANEL BOX Removal

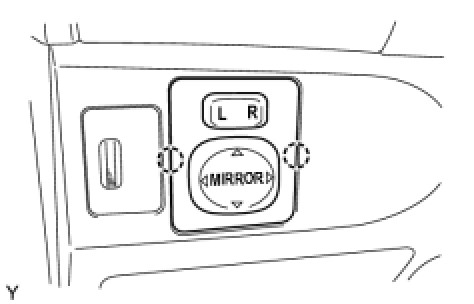

3. REMOVE OUTER MIRROR SWITCH ASSEMBLY
(a) Disconnect the connector.
(b) Disengage the 2 claws and remove the outer mirror switch.
