Removal

MIRROR: OUTER MIRROR SWITCH (for Sedan): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INSTRUMENT PANEL BOX Removal





3. REMOVE OUTER MIRROR SWITCH
(a) Disconnect the connector.

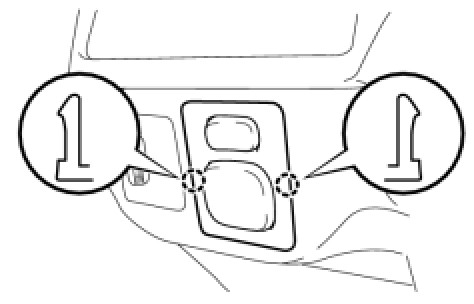

(b) Disengage the 2 claws and remove the outer mirror switch.
