MIRROR: OUTER REAR VIEW MIRROR (for Sedan): INSTALLATION

INSTALLATION

1. INSTALL OUTER MIRROR COVER

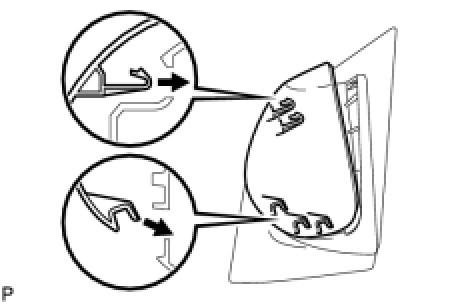

(a) Engage the claw on the lower part of the mirror cover.
(b) Engage the claw on the upper part of the mirror cover.
(c) After installing the outer mirror cover, check that there are no gaps between the cover and the mirror body.
NOTE: If there is a gap between the cover and the mirror body, it may cause noise during driving.

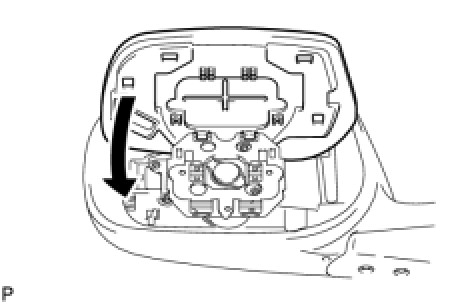

(d) Engage the 2 claws of the outer rear view mirror.
(e) Engage the 2 clips and install the mirror.





2. INSTALL OUTER REAR VIEW MIRROR
(a) Engage the claw and install the outer rear view mirror with the 3 nuts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
(b) w/ Power mirror:
Connect the connector.
3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly
4. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH Reassembly
5. INSTALL FRONT ARMREST BASE UPPER PANEL Reassembly
6. INSTALL FRONT DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Window) Reassembly
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
