Installation

DOOR LOCK: UNLOCK WARNING SWITCH: INSTALLATION

INSTALLATION

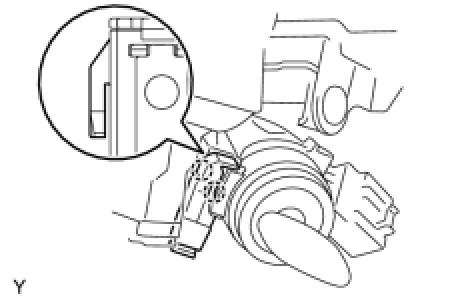

1. INSTALL UN-LOCK WARNING SWITCH ASSEMBLY
(a) Engage the 2 claws and install the unlock warning switch.
(b) Connect the connector.
2. INSTALL STEERING COLUMN COVER Installation
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
