Installation

EXTERIOR: SIDE MUDGUARD (for Hatchback): INSTALLATION

INSTALLATION
HINT: The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

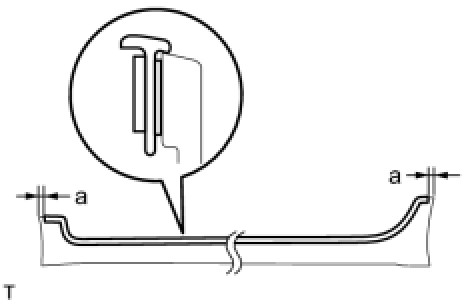

1. INSTALL SIDE MUDGUARD PROTECTOR

(a) Install a new side mudguard protector onto the side mudguard.

2. INSTALL SIDE MUDGUARD

(a) Engage the 8 clips and install the side mudguard.
(b) Press the double-sided adhesive tape of the side mudguard protector.
