Removal

EXTERIOR: SIDE MUDGUARD (for Hatchback): REMOVAL

REMOVAL
HINT: The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. REMOVE SIDE MUDGUARD

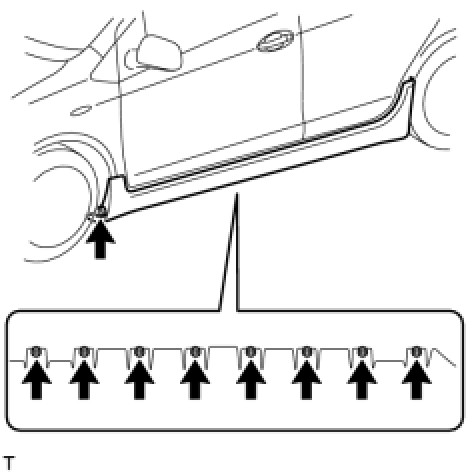

(a) Remove the screw.
(b) Using a clip remover, remove the 8 retainers.





(c) Using an infrared light, heat the side mudguard protector.

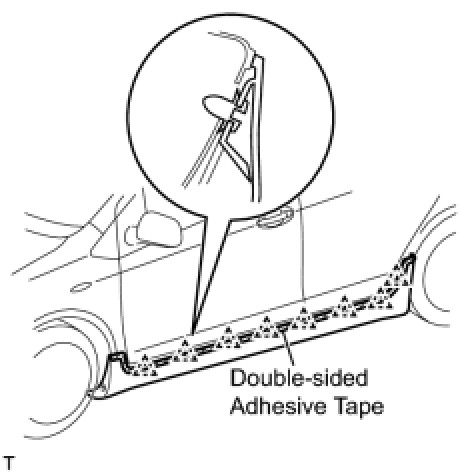

(d) Disengage the 8 clips and remove the double-sided adhesive tape of the side mudguard protector, and remove the side mudguard.
