Rear Spoiler (for Sedan)
>>
Disassembly
Disassembly
EXTERIOR: REAR
SPOILER
(for Sedan): DISASSEMBLY
DISASSEMBLY
1.

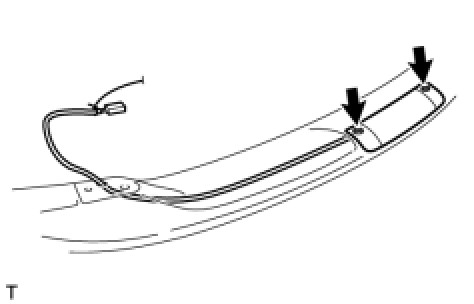

REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY
(a)
Tie a piece of string to the tip of the wire harness.
(b)
Remove the 2 screws and the high mounted stop light.
