How to Proceed With Troubleshooting

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Hatchback): HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- The anti-lock brake system troubleshooting procedures are based on the premise that the CAN communication system is normally functioning. Check the CAN communication system first before troubleshooting the vehicle stability control system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. CUSTOMER PROBLEM ANALYSIS
(a) Interview the customer and confirm the trouble.
NEXT -- Continue to next step.
3. CHECK DTC AND FREEZE FRAME DATA*
(a) Check and record DTC and Freeze Frame Data.
(b) Clear the DTC and Freeze Frame Data ABS (Antilock Brake System) (for Hatchback) for DTC Check/Clear, or ABS (Antilock Brake System) (for Hatchback) for Freeze Frame Data).
(c) Reconfirm the DTC.
(1) Reconfirm the DTC based on the recorded DTC and Freeze Frame Data ABS (Antilock Brake System) (for Hatchback) for DTC Check/Clear, or ABS (Antilock Brake System) (for Hatchback) for Freeze Frame Data).

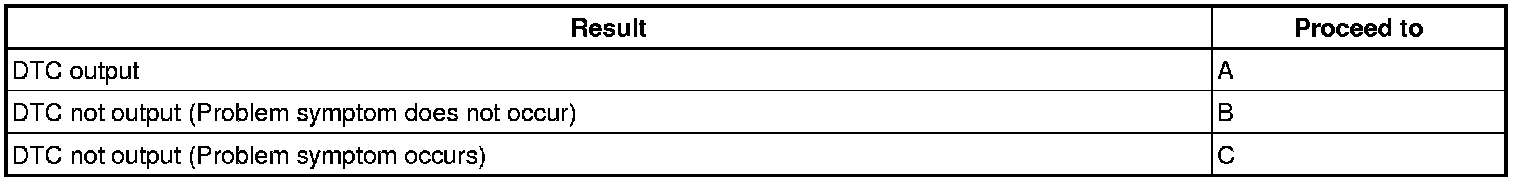

Result





B -- GO TO STEP 5
C -- GO TO STEP 6
A -- Continue to next step.
4. DIAGNOSTIC TROUBLE CODE CHART
(a) Proceed to Diagnostic Trouble Code Chart ABS (Antilock Brake System) (for Hatchback).
NEXT -- GO TO STEP 7
5. SYMPTOM SIMULATION
(a) Proceed to Check for Intermittent Problems Check For Intermittent Problems.
NEXT -- Continue to next step.
6. PROBLEM SYMPTOMS TABLE
(a) Proceed to Problem Symptoms Table Problem Symptoms Table.
NEXT -- Continue to next step.
7. CIRCUIT INSPECTION*
NEXT -- Continue to next step.
8. IDENTIFICATION OF PROBLEM
NEXT -- Continue to next step.
9. REPAIR OR REPLACEMENT
NEXT -- Continue to next step.
10. CONFIRMATION TEST*
NEXT -- END
