ABS (Antilock Brake System) (for Hatchback)

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Hatchback): TERMINALS OF ECU

TERMINALS OF ECU

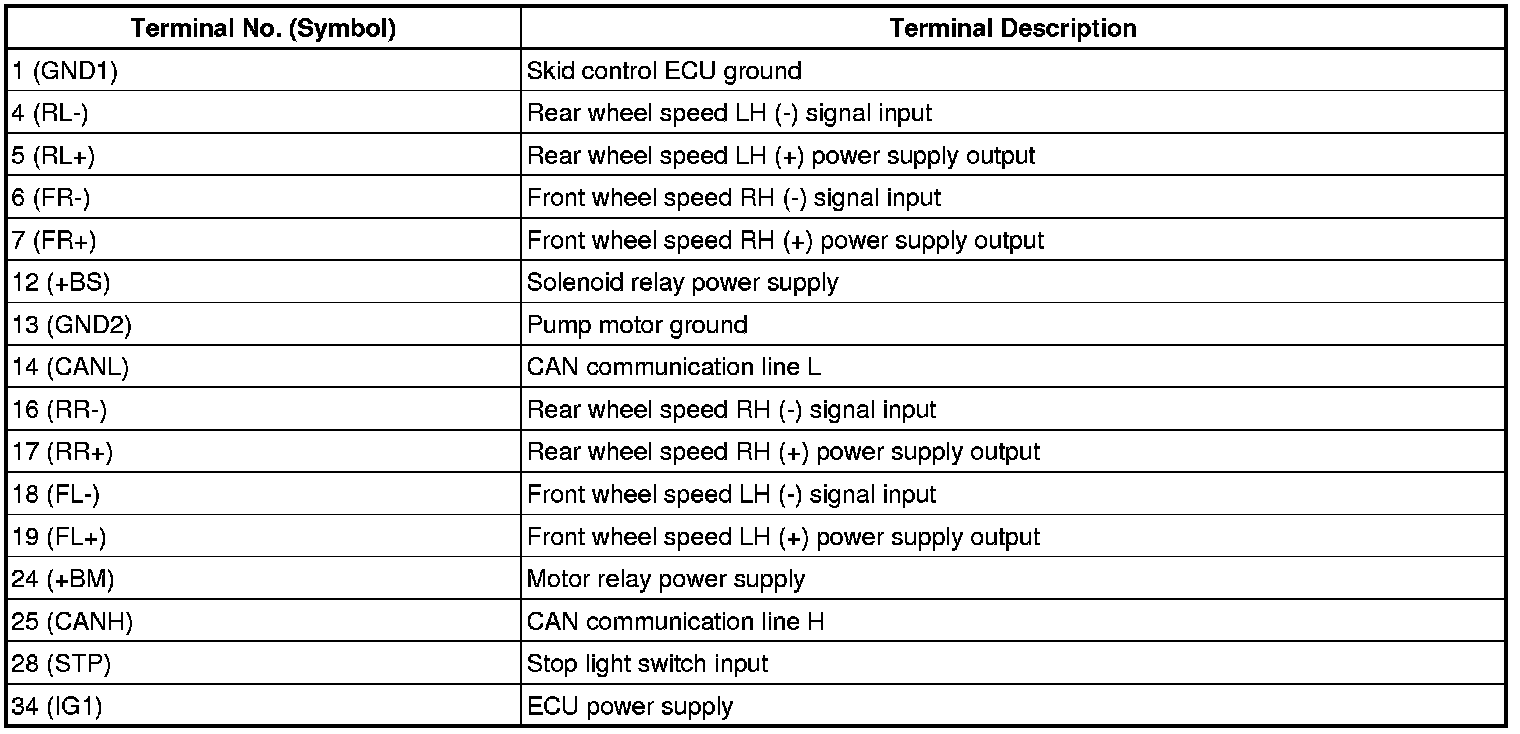

1. TERMINALS OF ECU









2. TERMINAL INSPECTION

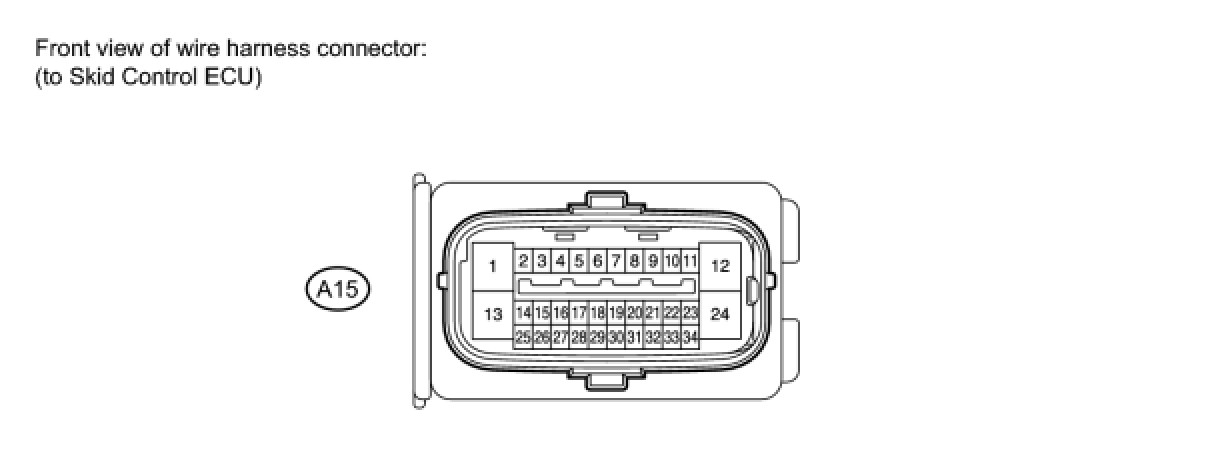

(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.




HINT: Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.

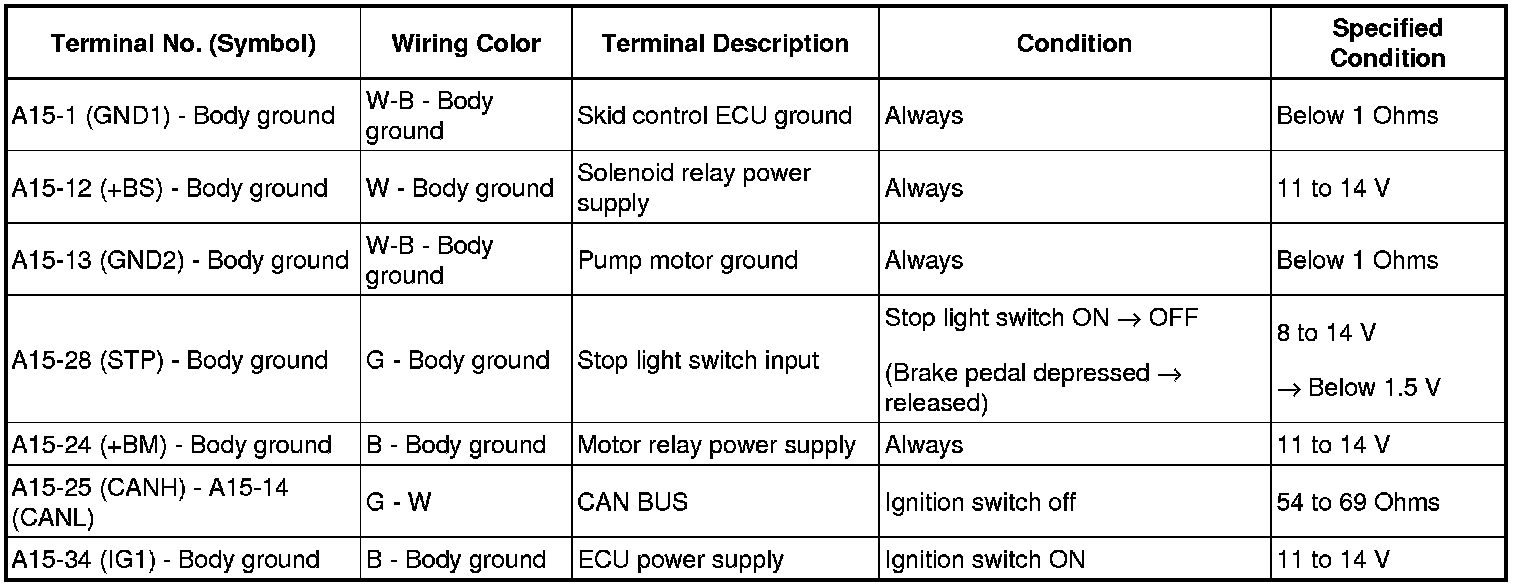

Standard
