ABS (Antilock Brake System) (for Sedan)

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Sedan): TERMINALS OF ECU

TERMINALS OF ECU

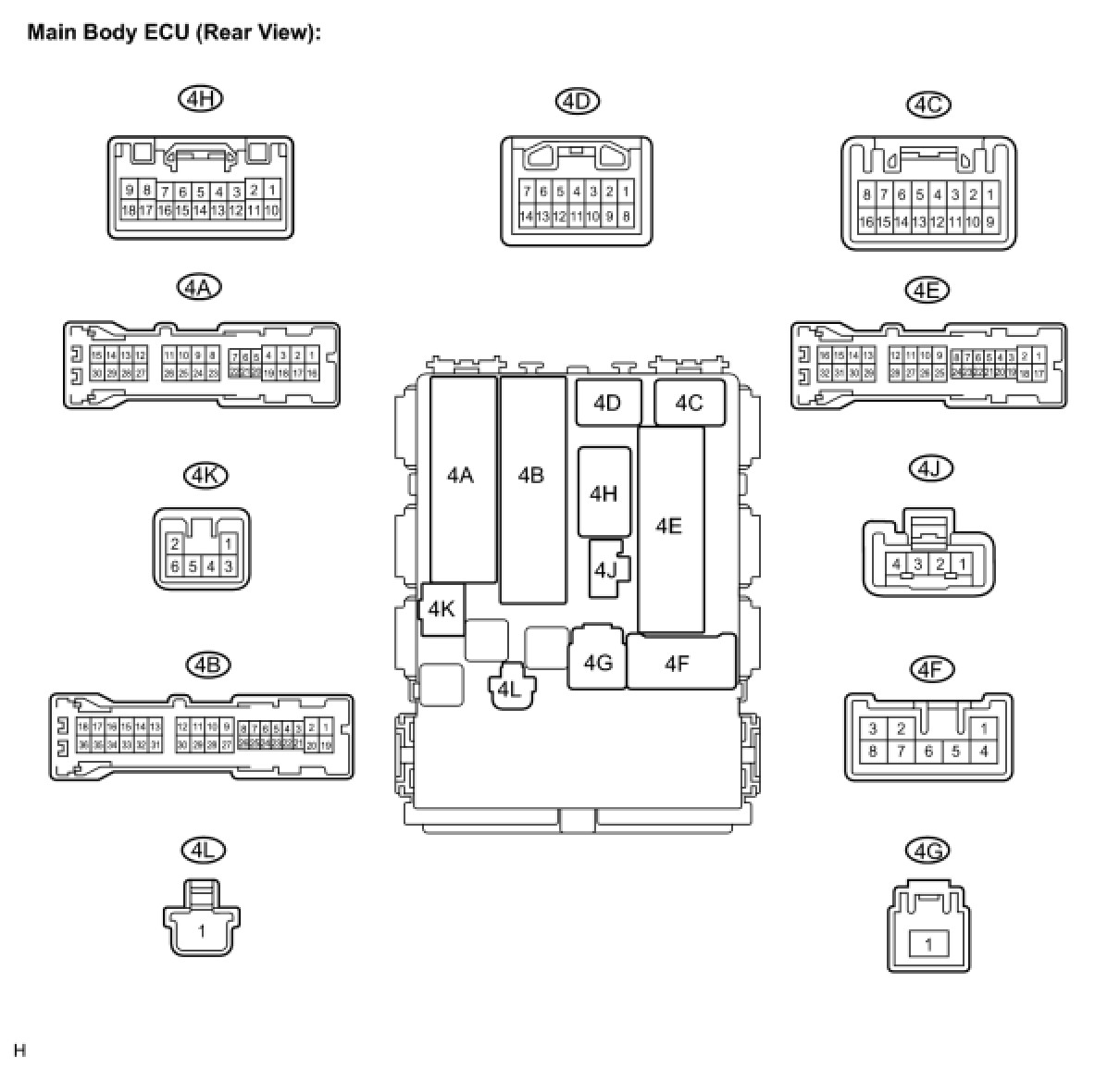

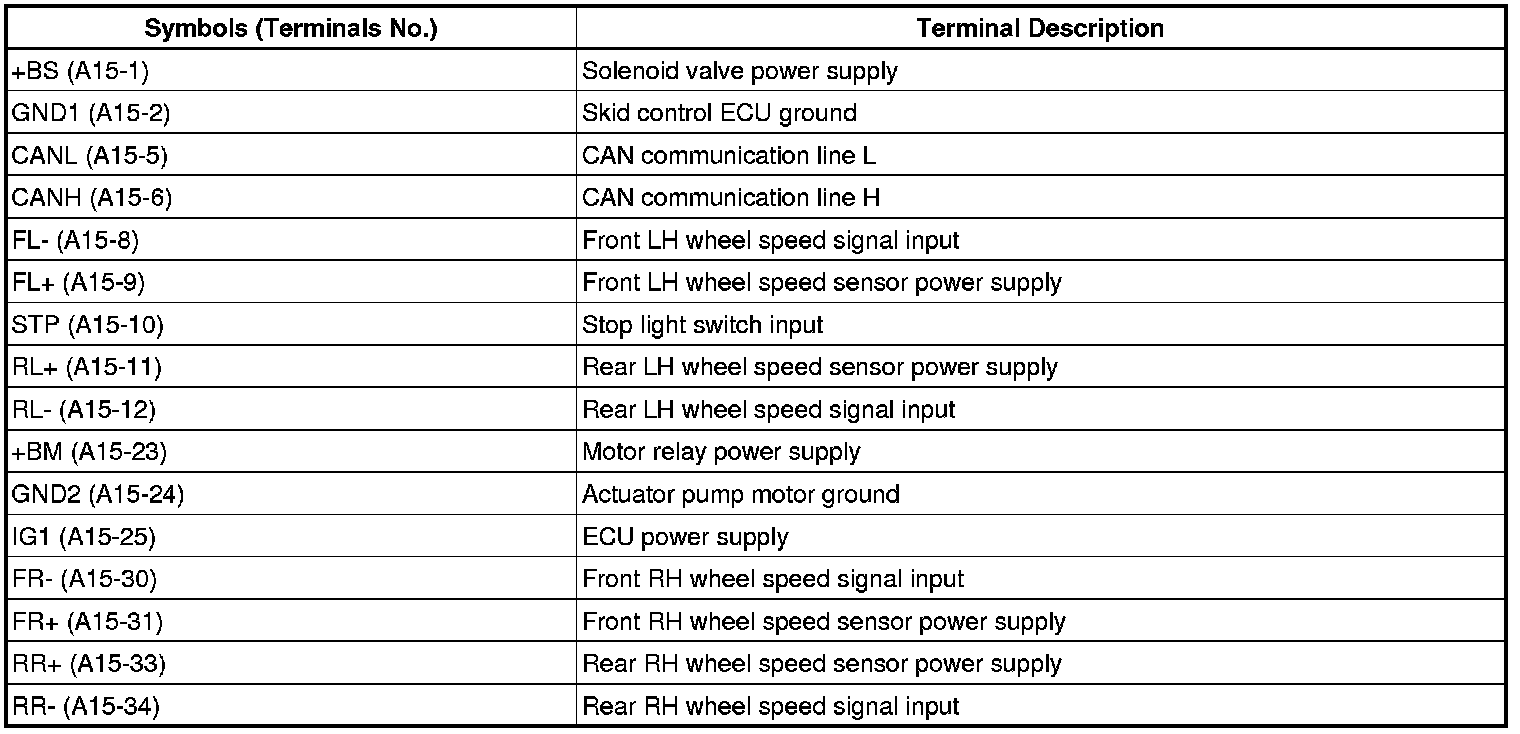

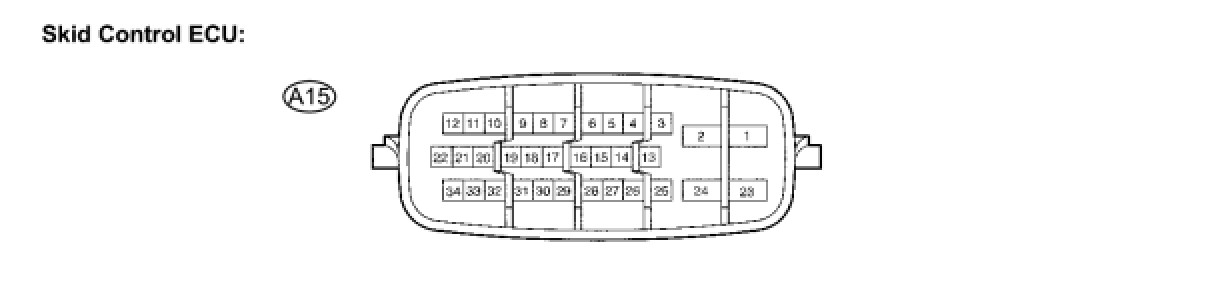

1. Terminals of ECU

















2. Terminal inspection

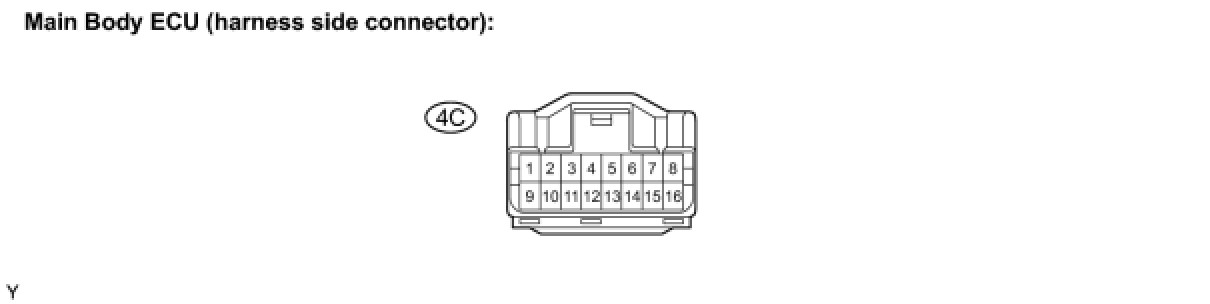

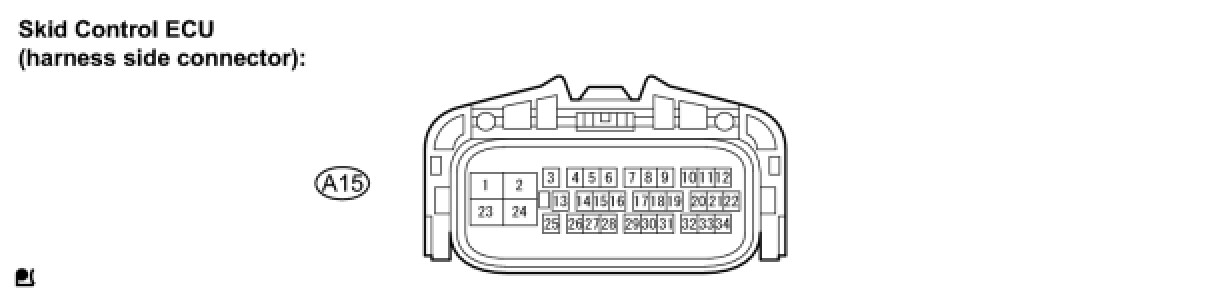

(a) Disconnect the connector and measure the resistance and voltage on the wire harness side.
HINT: The voltage cannot be measured with the connector connected to the skid control ECU as the connector is water resistant.

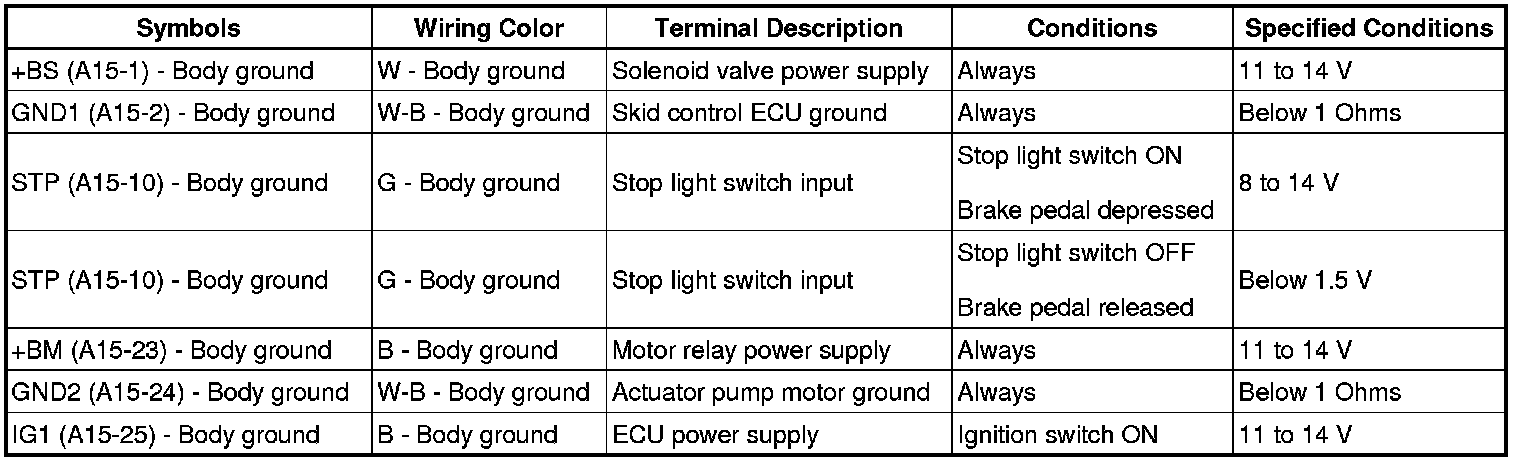

Standard:

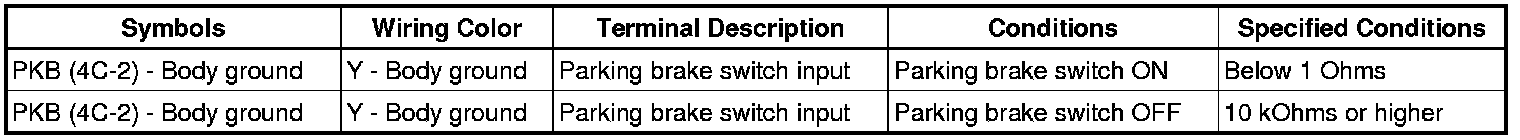

Standard resistance:
