BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Sedan): PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

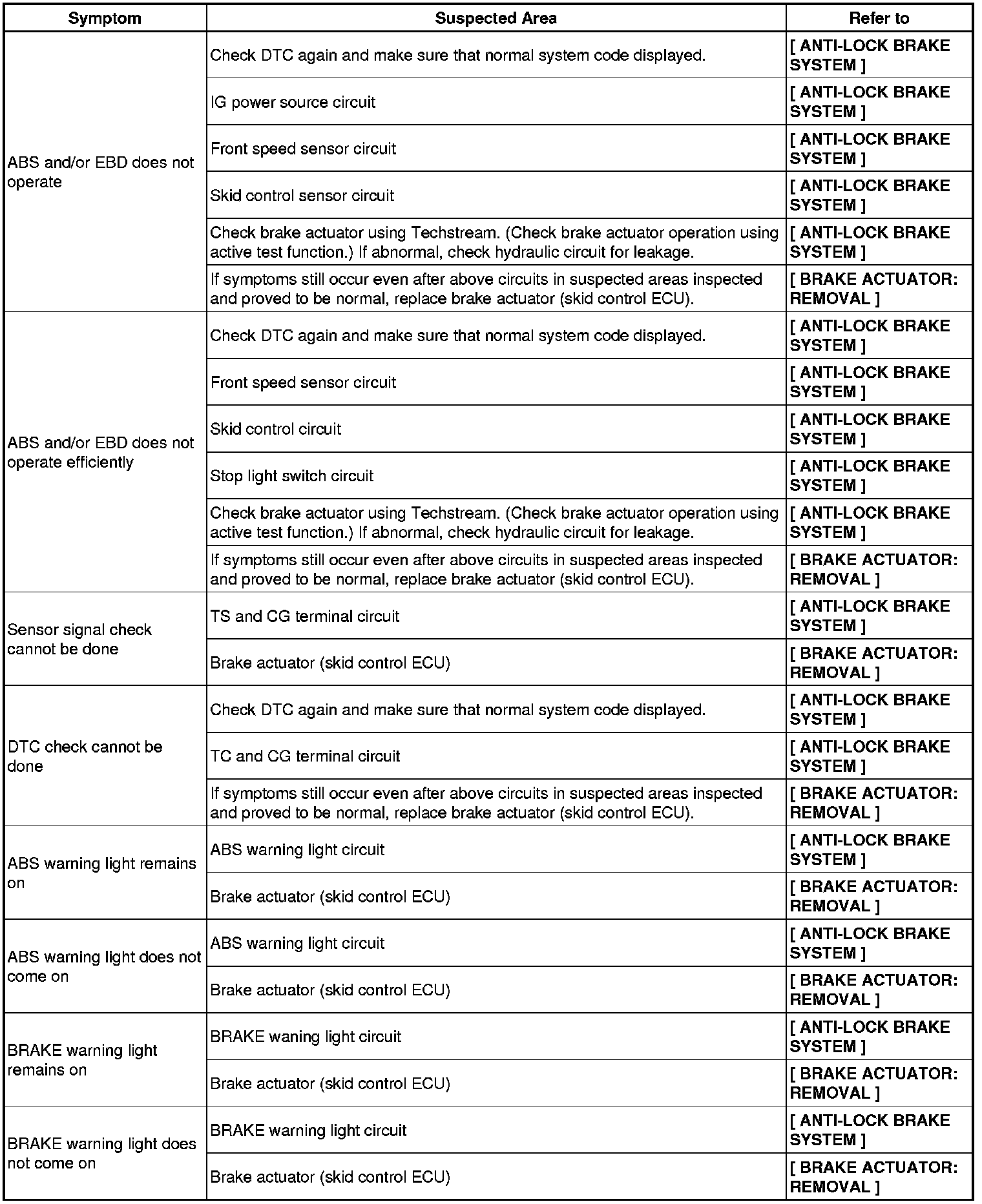

If no DTCs are displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant troubleshooting.
NOTE: When replacing the brake actuator or sensor, turn the ignition switch off.

ANTI-LOCK BRAKE SYSTEM
