Brakes and Traction Control: Description and Operation








BRAKE: BRAKE SYSTEM: SYSTEM DIAGRAM

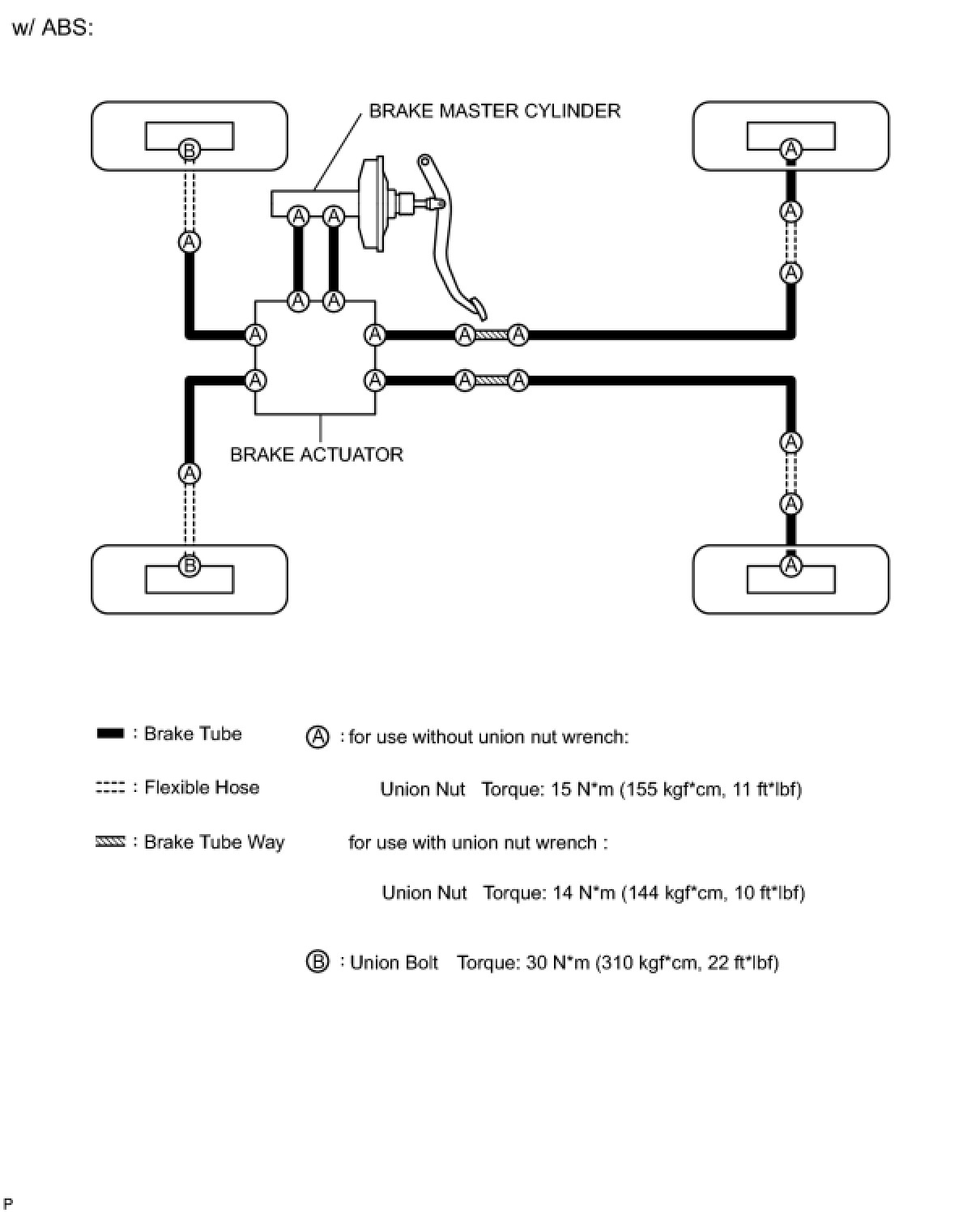

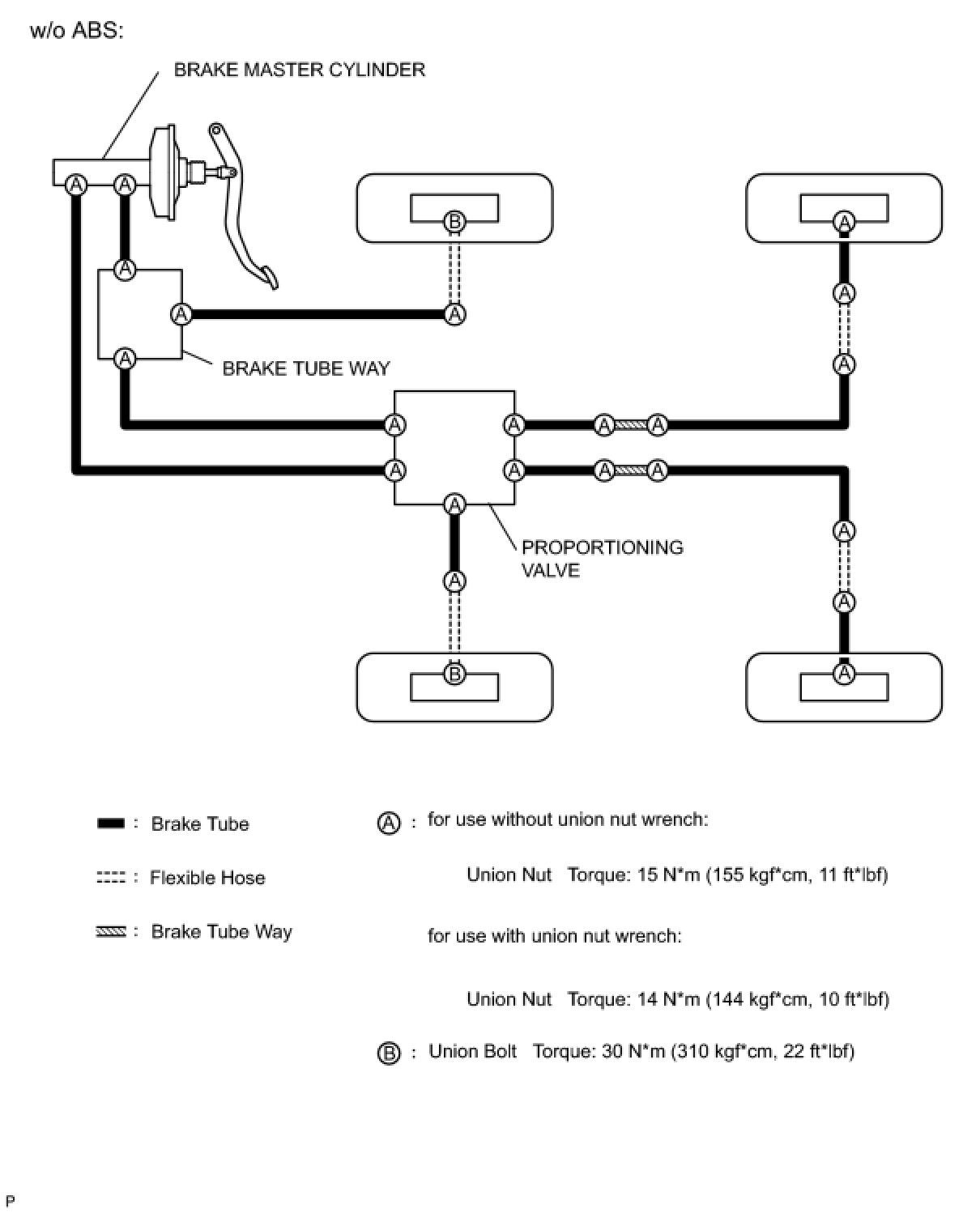

SYSTEM DIAGRAM
