BRAKE: REAR DRUM BRAKE: INSTALLATION

INSTALLATION

1. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY





2. ADJUST REAR DRUM BRAKE SHOE CLEARANCE
(a) Provisionally install the 2 hub nuts.

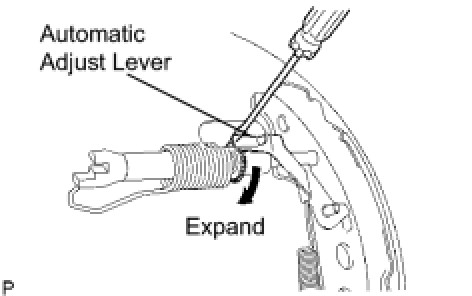

(b) Remove the hole plug, and turn the adjuster to expand the shoe until the drum locks.
(c) Using a screwdriver, release the adjuster 12 notches.
(d) Install the hole plug.
3. FILL RESERVOIR WITH BRAKE FLUID Service and Repair
4. BLEED MASTER CYLINDER Service and Repair
5. BLEED BRAKE LINE Service and Repair
6. CHECK FLUID LEVEL IN RESERVOIR Service and Repair
7. CHECK FOR BRAKE FLUID LEAKAGE
8. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
9. INSPECT PARKING BRAKE LEVER TRAVEL Adjustments
10. ADJUST PARKING BRAKE LEVER TRAVEL Adjustments
