Removal

BRAKE: FRONT BRAKE FLEXIBLE HOSE: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL
2. DRAIN BRAKE FLUID
NOTE: Immediately wash off any brake fluid that comes into contact with any painted surfaces.

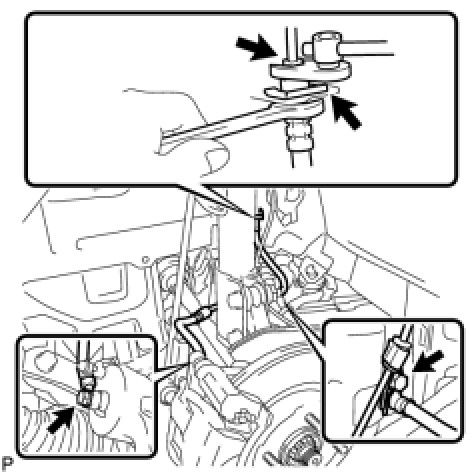

3. REMOVE FRONT BRAKE FLEXIBLE HOSE
(a) Using a union nut wrench, separate the brake tube.
(b) Remove the clip.
(c) w/ ABS:
(1) Remove the bolt and separate the flexible hose and speed sensor.
(d) w/o ABS:
(1) Remove the bolt and separate the flexible hose.
(e) Remove the union bolt and gasket and remove the flexible hose from the disc brake cylinder.
