Removal

BRAKE: REAR BRAKE FLEXIBLE HOSE: REMOVAL

REMOVAL

1. REMOVE REAR WHEEL
2. DRAIN BRAKE FLUID
NOTE: Immediately wash off any brake fluid that comes into contact with any painted surfaces.

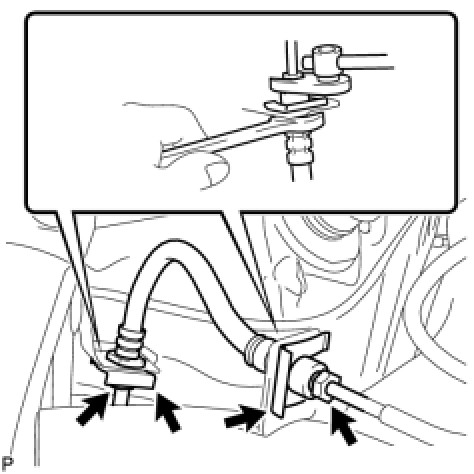

3. REMOVE REAR BRAKE FLEXIBLE HOSE
(a) Using a union nut wrench, separate the brake tubes.
(b) Remove the 2 clips and flexible hose from the axle beam.
