Installation

BRAKE: PROPORTIONING VALVE: INSTALLATION

INSTALLATION

1. INSTALL PROPORTIONING VALVE

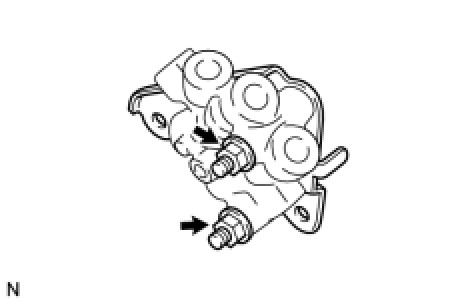

(a) Install the proportioning valve onto the proportioning valve bracket with the 2 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

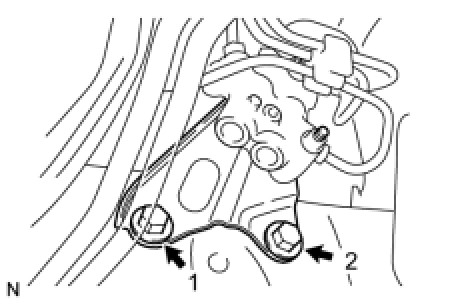

(b) Install the 2 bolts onto the proportioning valve bracket in the sequence order shown in the illustration.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)

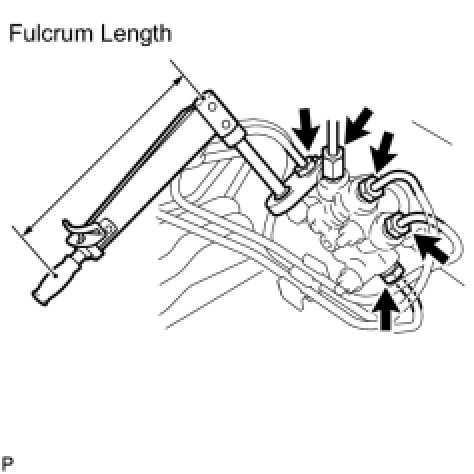

(c) Using a union nut wrench, install the 5 brake tubes onto the proportioning valve.
without union nut wrench - Torque: 15 Nm (155 kgf-cm, 11 ft-lbf)
with union nut wrench - Torque: 14 Nm (144 kgf-cm, 10 ft-lbf)
HINT:
- This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and a union nut wrench with a fulcrum length of 22 mm (0.866 in.) Service Precautions.
- This torque value is effective when the union nut wrench is parallel to the torque wrench.

2. FILL RESERVOIR WITH BRAKE FLUID Service and Repair
3. BLEED MASTER CYLINDER Service and Repair
4. BLEED BRAKE LINE Service and Repair
5. CHECK FLUID LEVEL IN RESERVOIR Service and Repair
6. CHECK FOR BRAKE FLUID LEAKAGE
