Installation

PARKING BRAKE: PARKING BRAKE CABLE: INSTALLATION

INSTALLATION

1. INSTALL PARKING BRAKE CABLE

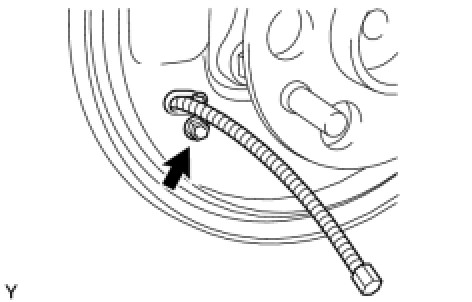

(a) Install the parking brake cable onto the backing plate with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)

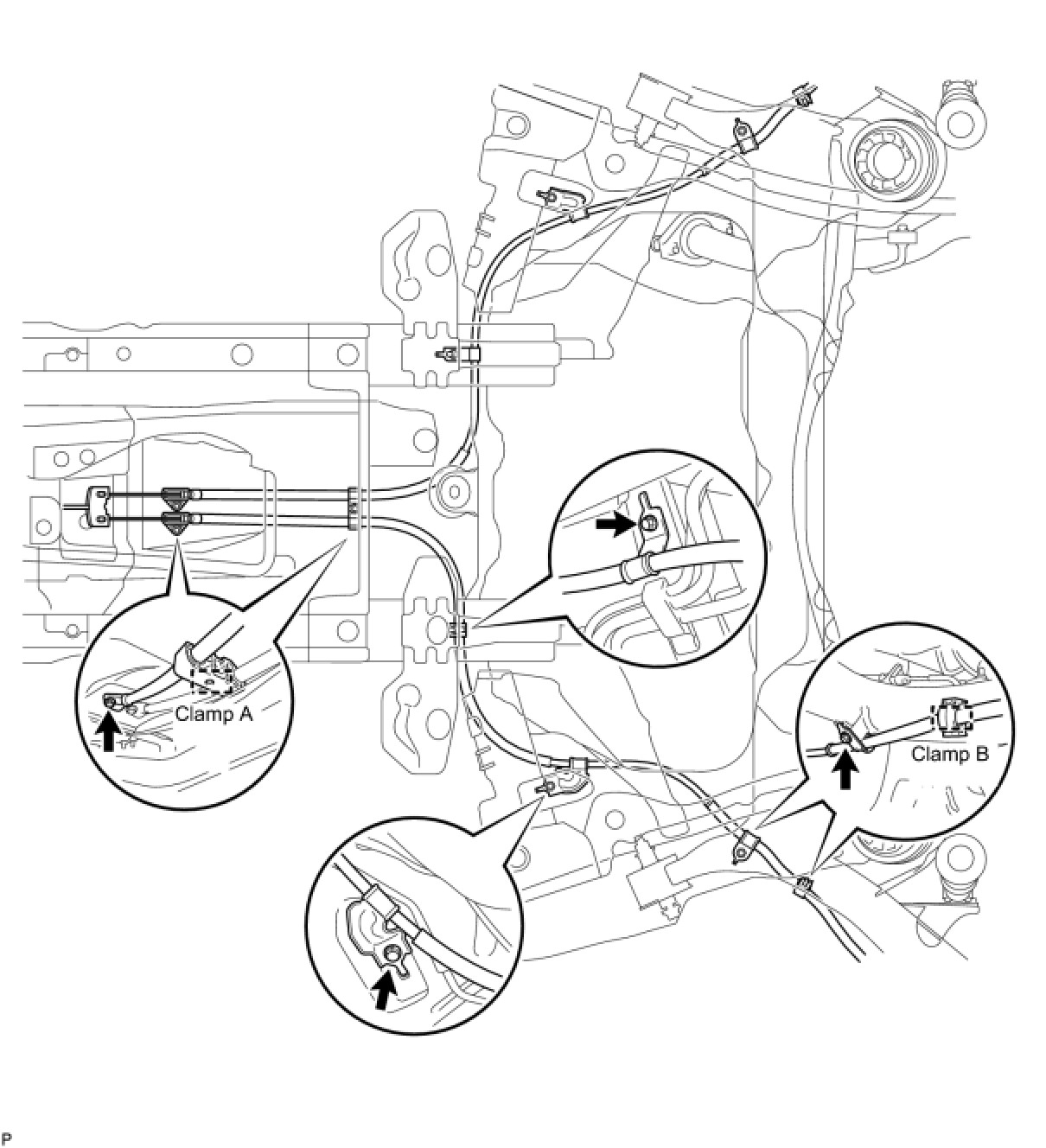

(b) Install a new cable clamp B onto the rear axle beam.
NOTE: Securely install the clamp.





(c) Tighten the 4 bolts.
Torque: 6.0 Nm (61 kgf-cm, 53 in-lbf)
(d) Pass the parking brake cable through a new cable clamp A, and then install cable clamp A onto the stud bolt.
NOTE: Securely install the clamp.

(e) Connect the cable end to the equalizer.





2. INSTALL FUEL TANK COVER VENT CASE SUB-ASSEMBLY (for RH Side)

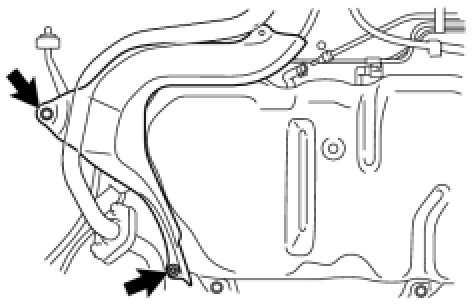

(a) Install the fuel tank cover vent case with the bolt and clip
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)





3. INSTALL FRONT FLOOR NO. 4 HEAT INSULATOR

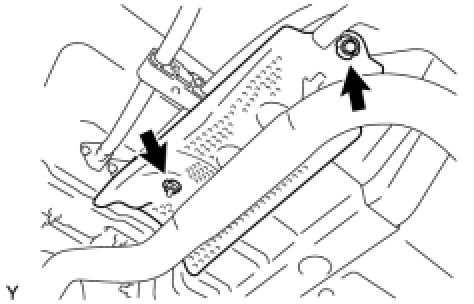

(a) Install the heat insulator with the 2 nuts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
4. INSTALL REAR BRAKE SHOE KIT Reassembly
5. CHECK REAR DRUM BRAKE INSTALLATION Reassembly
6. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY
7. ADJUST REAR DRUM BRAKE SHOE CLEARANCE Installation
8. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
9. INSPECT PARKING BRAKE LEVER TRAVEL Adjustments
10. ADJUST PARKING BRAKE LEVER TRAVEL Adjustments
11. INSTALL REAR CONSOLE BOX ASSEMBLY Installation
12. INSTALL CONSOLE BOX CARPET Installation
13. INSTALL REAR CONSOLE BOX COVER (for Hatchback) Installation
14. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Installation
15. INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY (for Hatchback Manual Transaxle) Installation
16. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Installation
17. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
18. INSTALL CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Sedan) Installation
