PARKING BRAKE: PARKING BRAKE CABLE: REMOVAL

REMOVAL

1. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Sedan) Removal
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
3. REMOVE SHIFTING HOLE COVER SUB-ASSEMBLY (for Hatchback Manual Transaxle) Removal
4. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Removal
5. REMOVE REAR CONSOLE BOX COVER (for Hatchback) Removal
6. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Removal
7. REMOVE CONSOLE BOX CARPET Removal
8. REMOVE REAR CONSOLE BOX ASSEMBLY Removal
9. REMOVE REAR WHEEL
10. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY Removal
11. REMOVE REAR BRAKE SHOE KIT Disassembly





12. REMOVE FRONT FLOOR NO. 4 HEAT INSULATOR
(a) Remove the 2 nuts and remove the heat insulator.

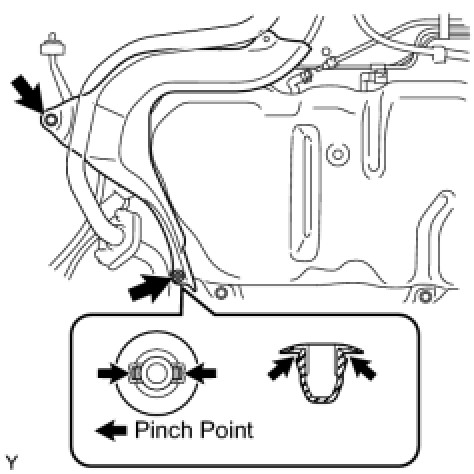

13. REMOVE FUEL TANK COVER VENT CASE SUB-ASSEMBLY (for RH Side)
(a) Pinch and remove the clip as shown in the illustration.
(b) Remove the bolt and fuel tank cover vent case.
14. LOOSEN NO. 1 WIRE ADJUSTING NUT Removal

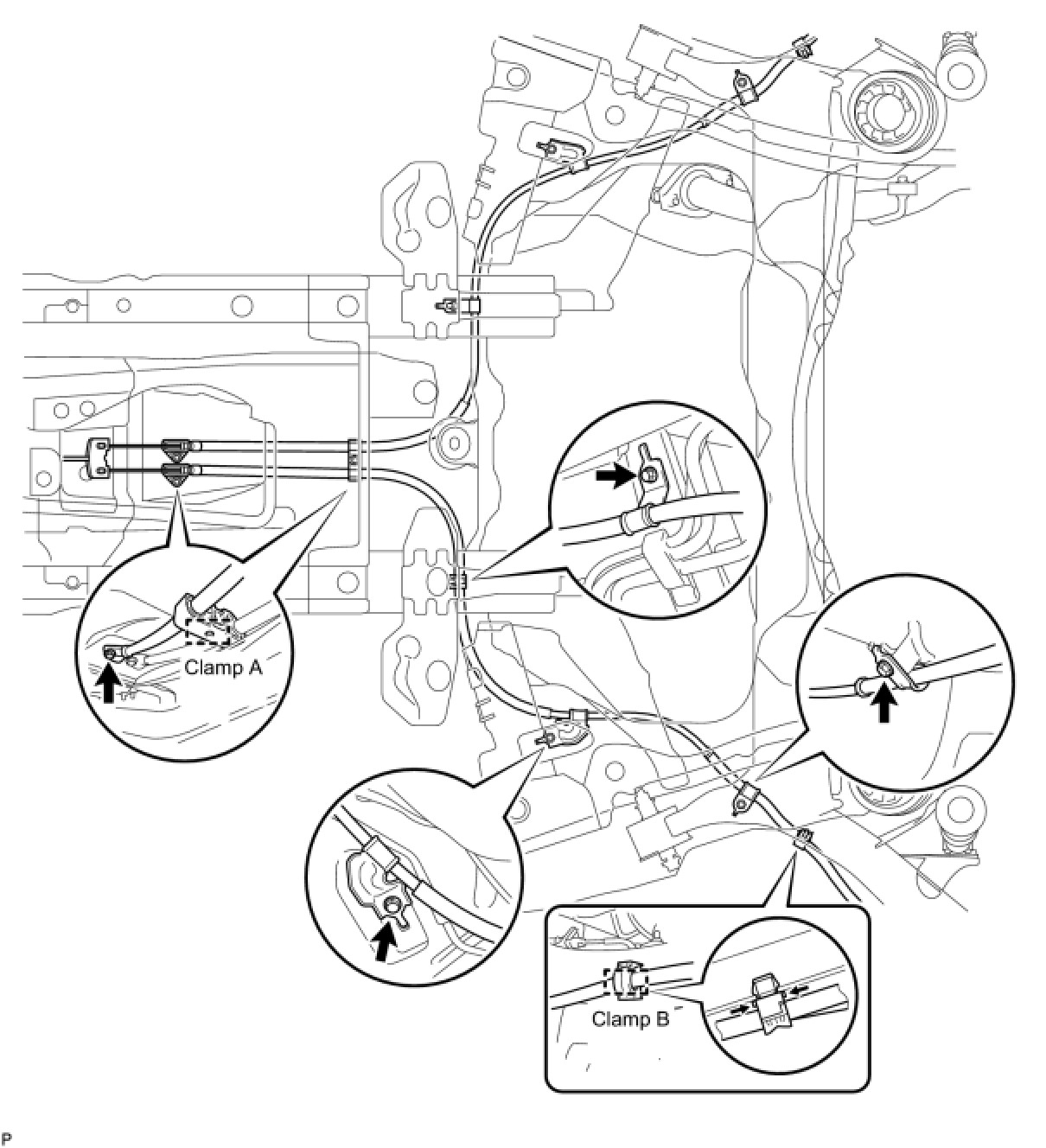

15. REMOVE PARKING BRAKE CABLE
(a) Disconnect the cable end from the equalizer.
(b) Remove cable clamp A from the body.





(c) Remove the 4 bolts.
(d) Using pliers, pinch both ends of the claw of cable clamp B and flex the clamp to remove it.





(e) Remove the bolt and remove the parking brake cable from the backing plate.
(f) Remove the cable clamp B from the parking brake cable.
HINT: Replace the cable clamp B with a new one when installing the parking brake cable.
