TS and CG Terminal Circuit

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Hatchback): TS and CG Terminal Circuit

TS and CG Terminal Circuit

DESCRIPTION

In the Test Mode (signal check), a malfunction in the speed sensor that cannot be detected when the vehicle is stopped can be detected while driving.
Transition to the sensor check mode can be performed by connecting terminals TS and CG of the DLC3 and turning the ignition switch from off to ON.

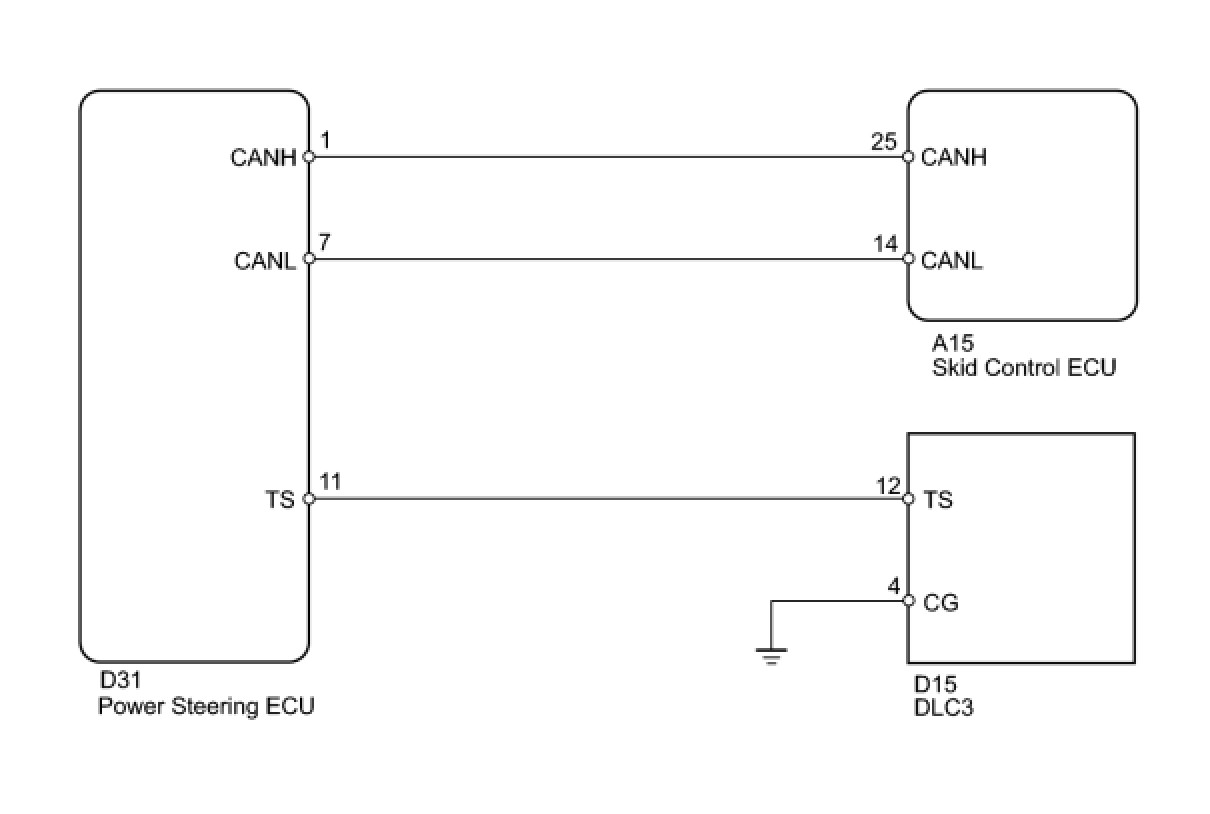

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM
(a) Check if CAN communication system DTCs are output Diagnosis System.

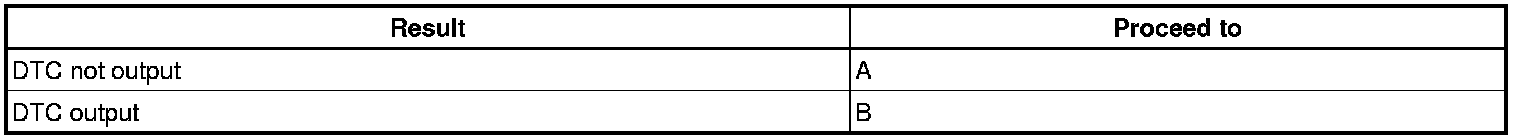

Result





B -- CHECK CAN COMMUNICATION SYSTEM
A -- Continue to next step.

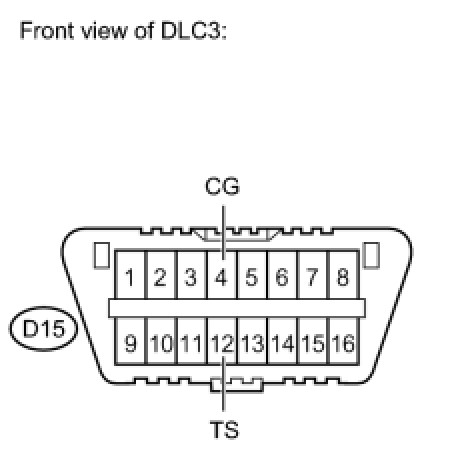

2. INSPECT DLC3




(a) Turn the ignition switch to ON.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:

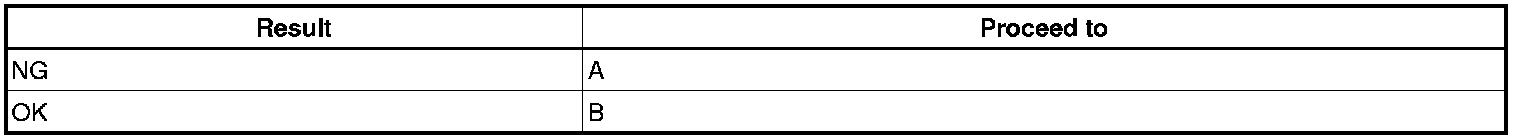

Result





B -- INSPECT POWER STEERING ECU (TS of DLC3 INPUT)
A -- Continue to next step.

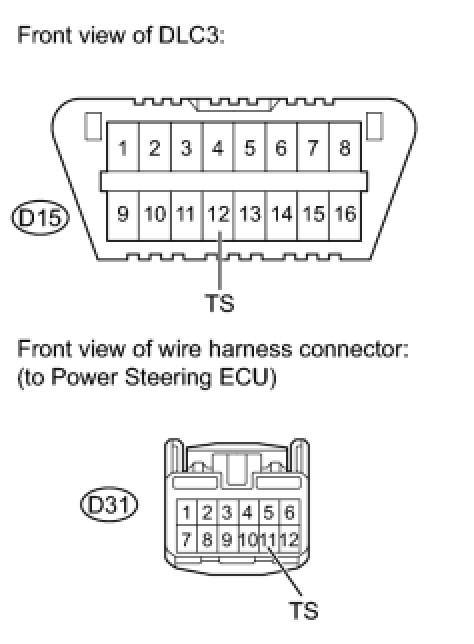

3. CHECK HARNESS AND CONNECTOR (TS of DLC3 - POWER STEERING ECU)




(a) Turn the ignition switch off.
(b) Disconnect the power steering ECU connector.
(c) Inspect the connector case and the terminal for deformation and corrosion.
OK:
No deformation or corrosion.
(d) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

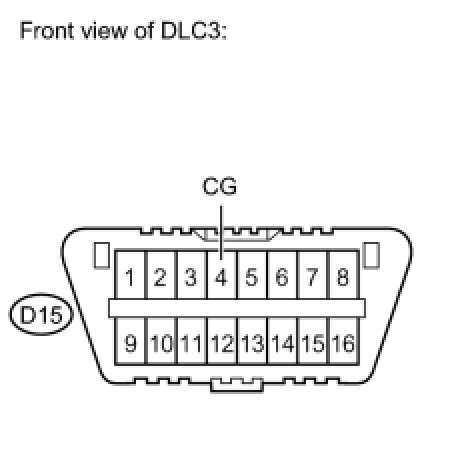

4. CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)




(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
5. INSPECT POWER STEERING ECU (TS of DLC3 INPUT)




(a) Turn the ignition switch off.
(b) Reconnect the power steering ECU connector.
(c) Using SST, connect terminals TS and CG of the DLC3.
(d) Turn the ignition switch to ON.
(e) Check that the PS warning light is blinking.

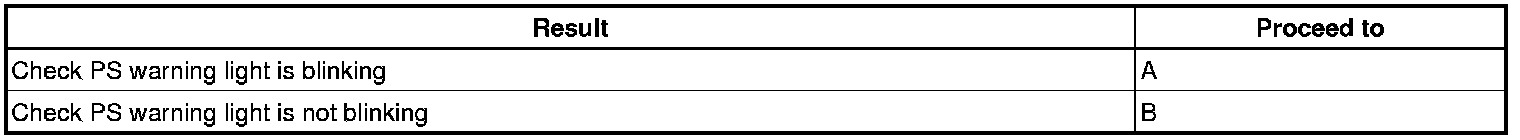

Result





B -- CHECK POWER STEERING SYSTEM
A -- REPLACE BRAKE ACTUATOR ASSEMBLY
