Wire and Wire In Instrument Panel [H/B]
Wire and Wire In Instrument Panel [H/B]

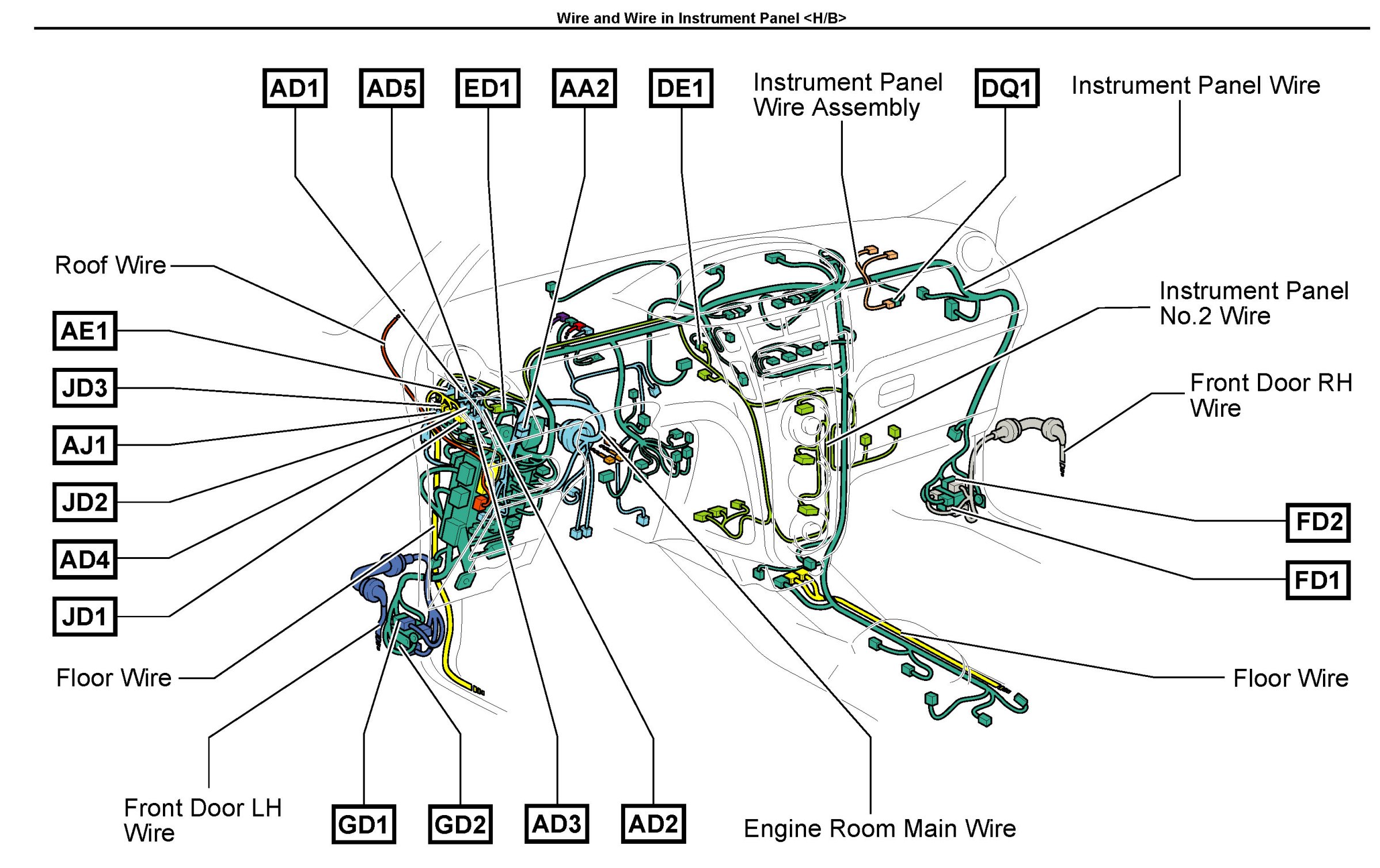

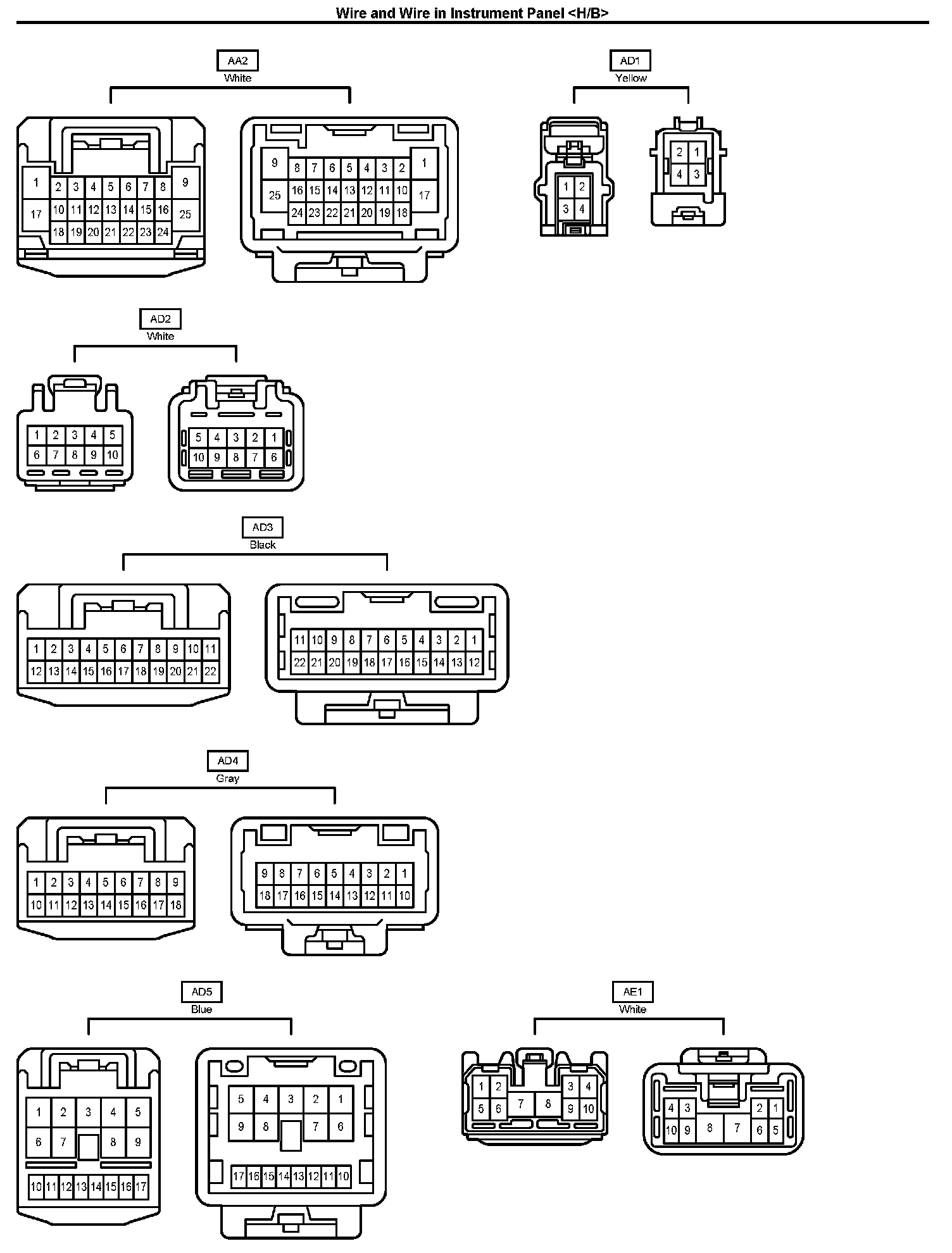

AA2-JD3:
AA2-AE1:

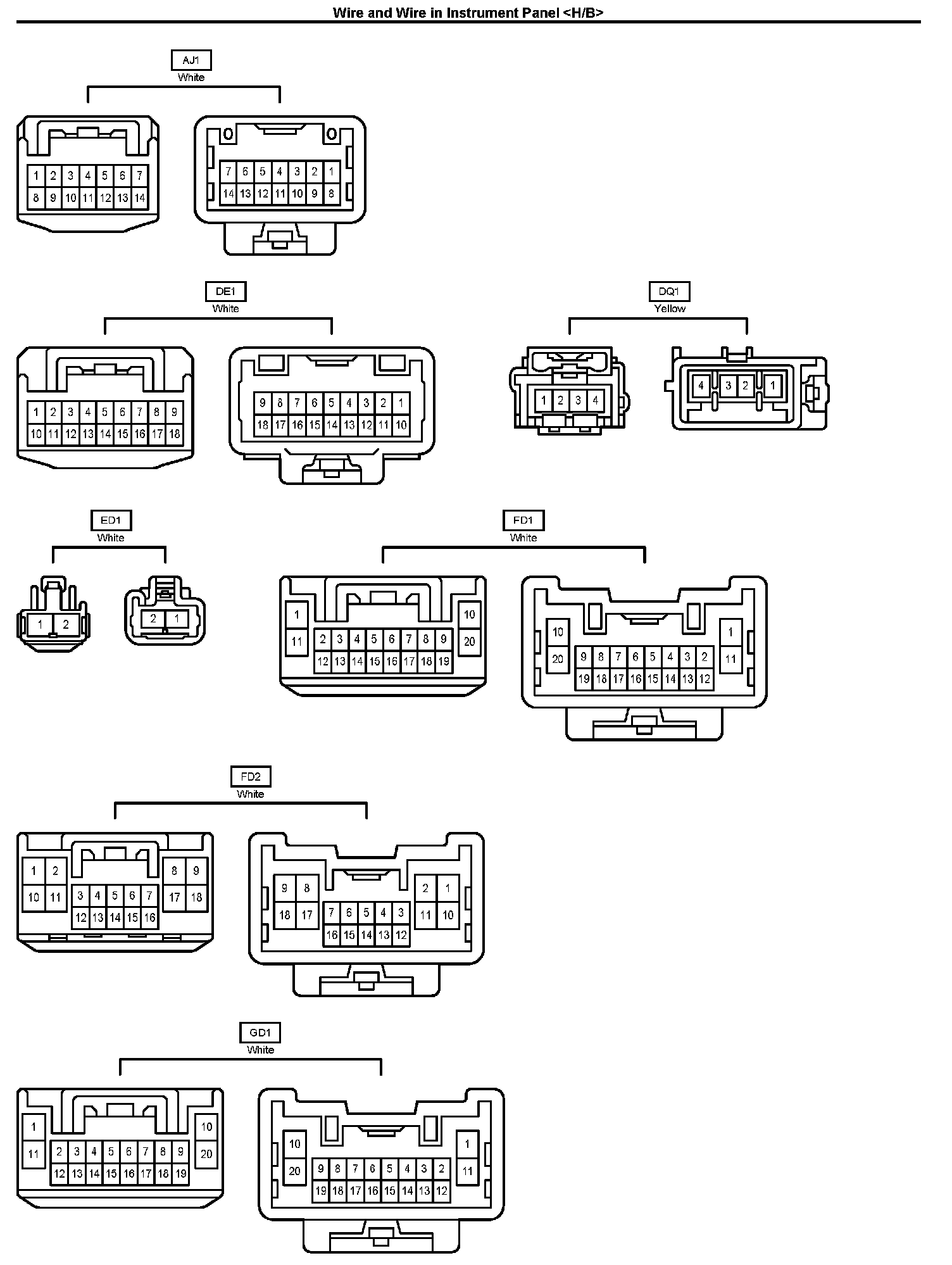

AJ1-GD1:

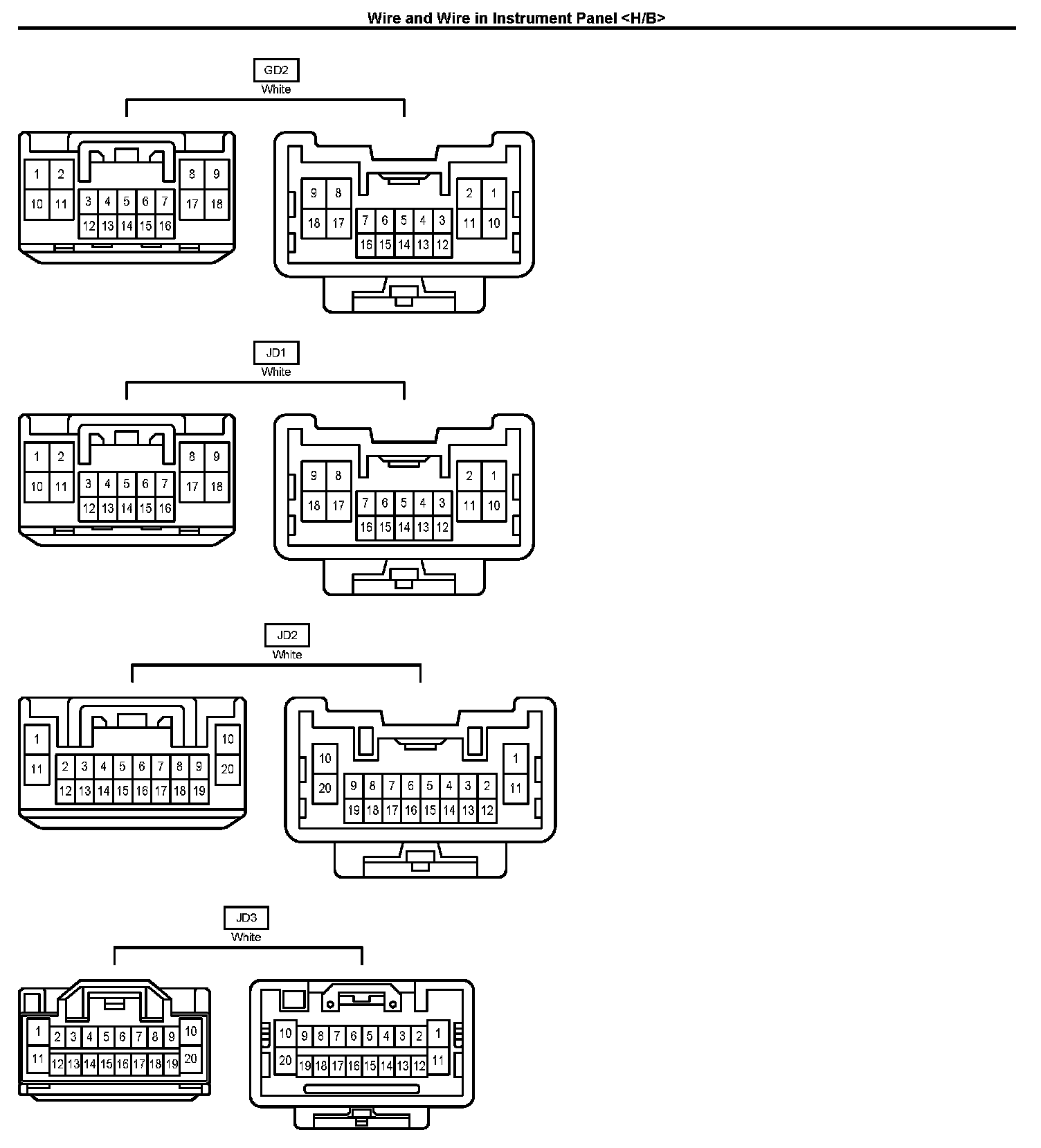

GD2-JD3:
