Wire and Wire, Ground Points In Body [5-Door]
Wire and Wire, Ground Points In Body [5-Door]

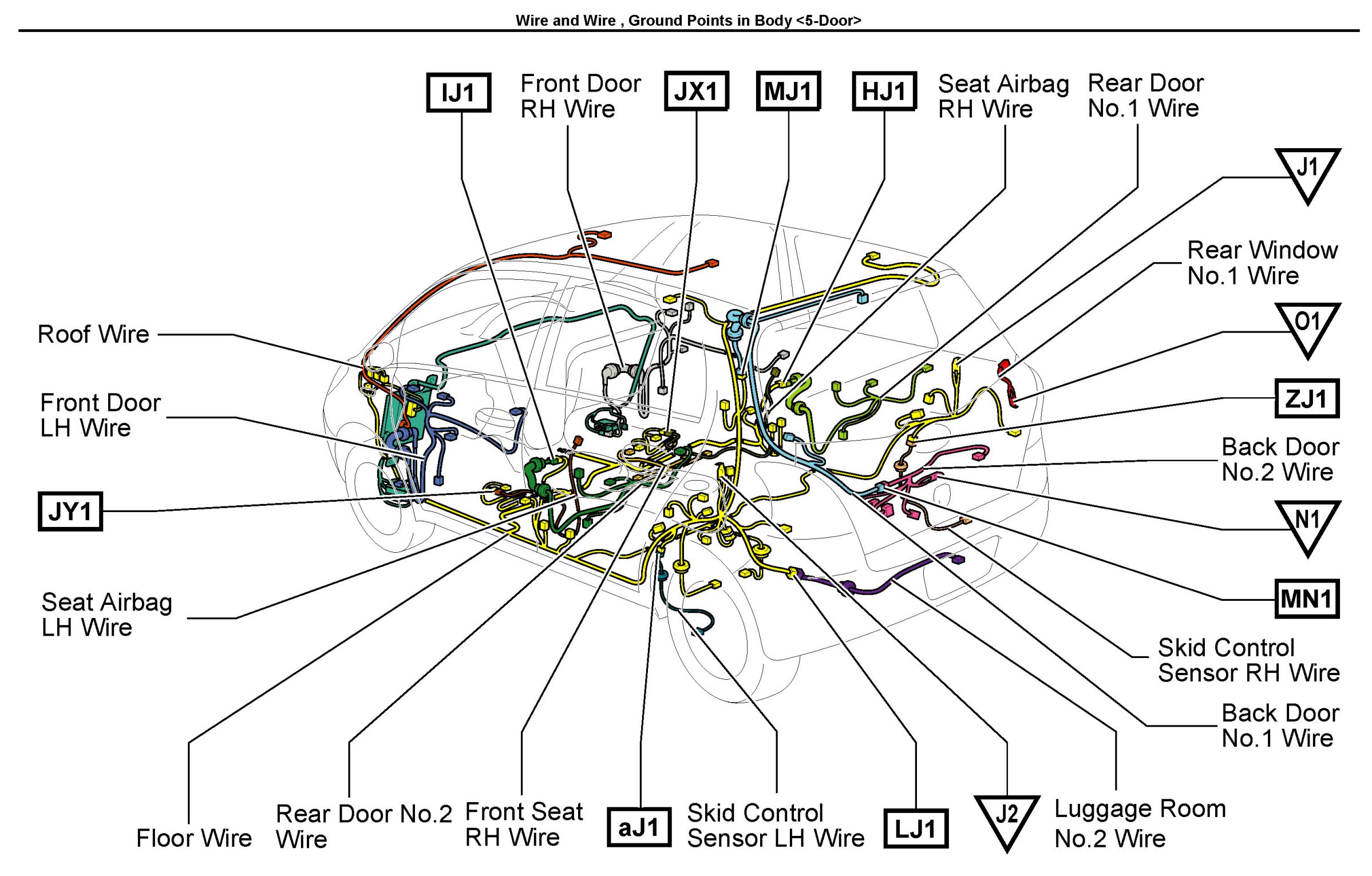

aJ1-ZJ1, J1-O1:

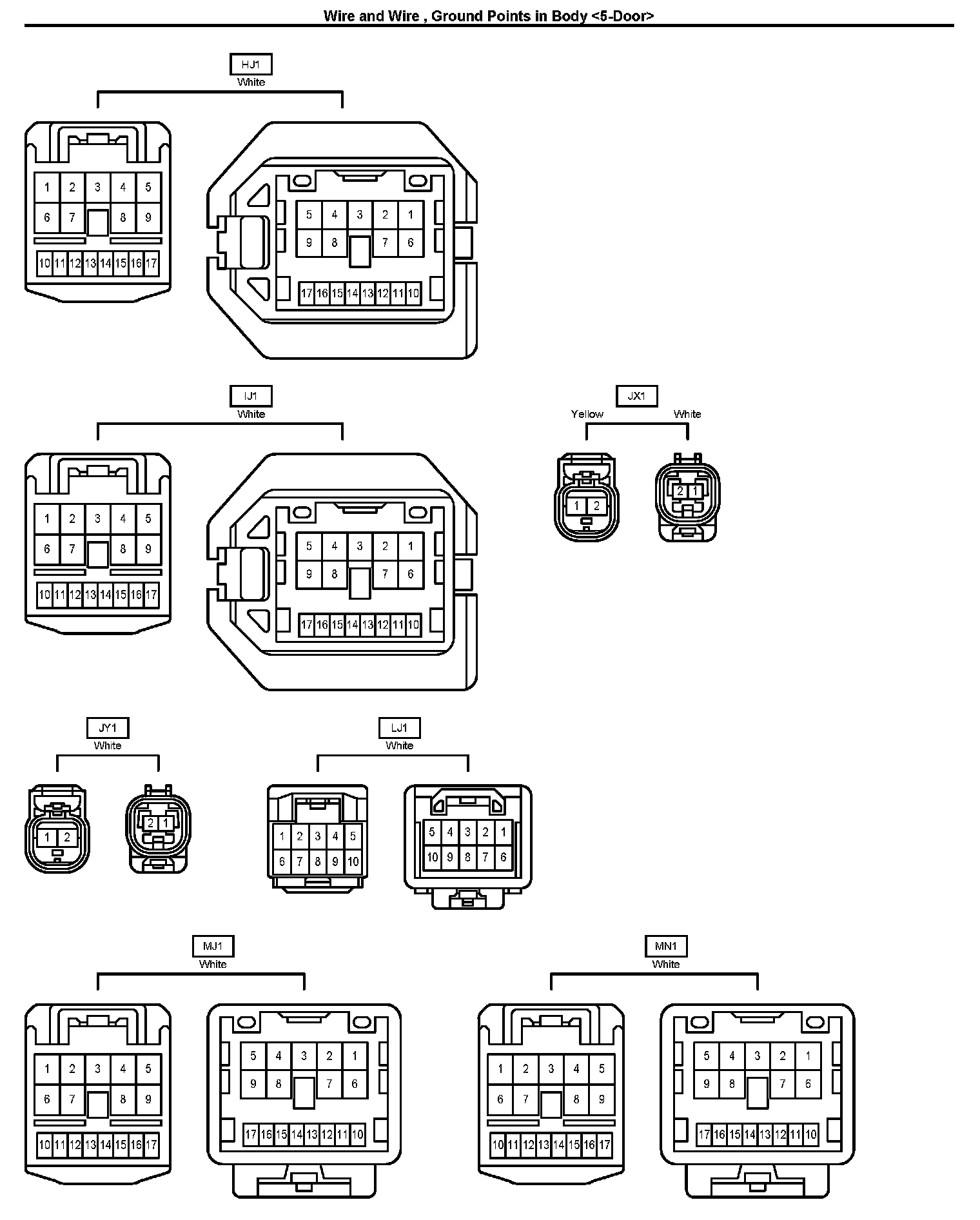

HJ1-MN1:

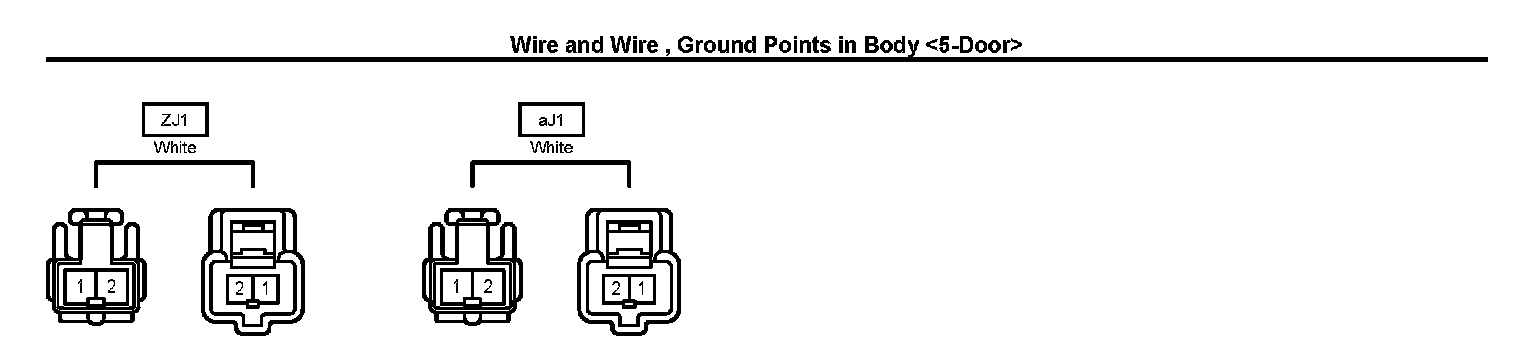

aJ1-ZJ1:
