Integration Relay

1NZ-FE COOLING: INTEGRATION RELAY: INSPECTION

INSPECTION





1. INSPECT INTEGRATION RELAY

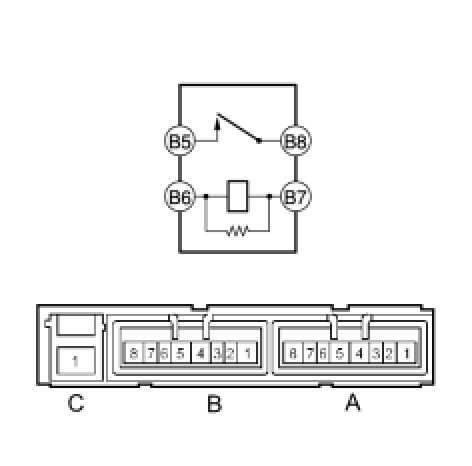

(a) Inspect the cooling fan relay.
(1) Using an ohmmeter, measure the resistance between the terminals.

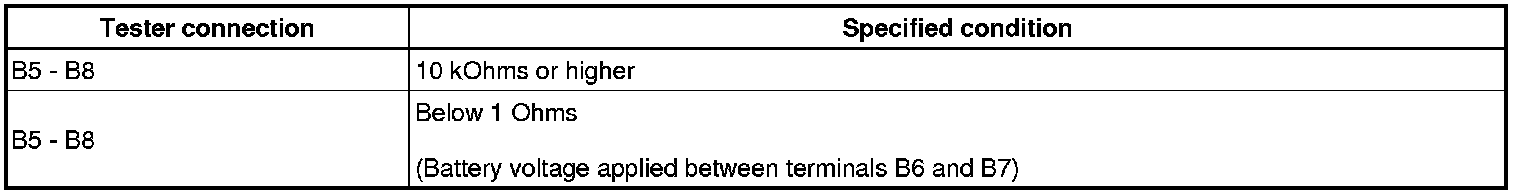

Standard resistance:





NOTE: While using the battery for the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
