Radiator Cooling Fan Resistor: Testing and Inspection

1NZ-FE COOLING: COOLING FAN RESISTOR: INSPECTION

INSPECTION





1. INSPECT COOLING FAN RESISTOR

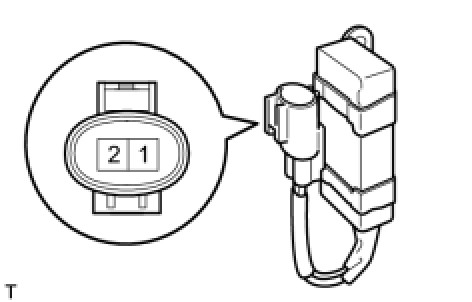

(a) Using an ohmmeter, measure the resistance between the terminals.
Standard resistance:
1.17 to 1.43 Ohms at 20°C (68°F)
