Disassembly

1NZ-FE LUBRICATION: OIL PUMP: DISASSEMBLY

DISASSEMBLY





1. REMOVE OIL PUMP COVER
(a) Remove the 2 bolts and 3 screws and remove the oil pump cover.

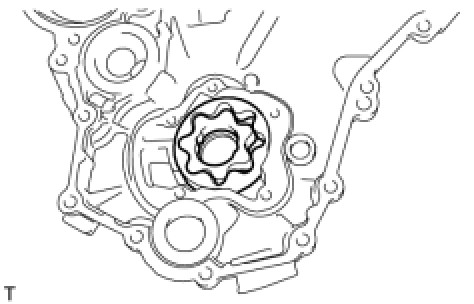

2. REMOVE OIL PUMP ROTOR SET
(a) Remove the oil pump rotor set.





3. REMOVE OIL PUMP RELIEF VALVE
(a) Remove the oil pump relief valve plug, oil pump relief valve spring and oil pump relief valve.
