1NZ-FE LUBRICATION: OIL PUMP: REPLACEMENT

REPLACEMENT





1. REMOVE OIL PUMP SEAL

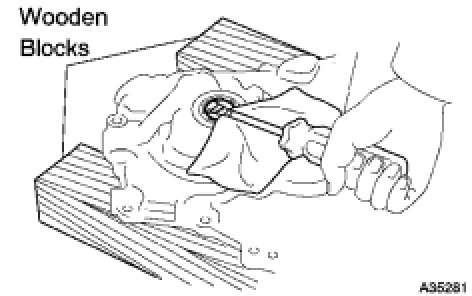

(a) Using a screwdriver with its tip wrapped in protective tape, remove the oil pump seal.





2. INSTALL OIL PUMP SEAL

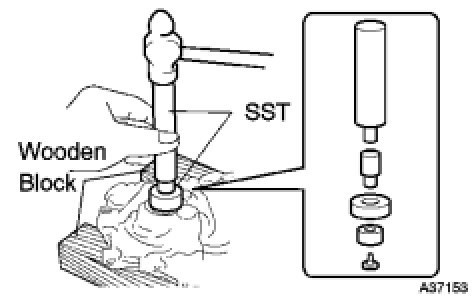

(a) Using SST and a hammer, tap in a new oil seal until its surface is flush with the timing chain cover edge.
SST: 09950-60010
09951-00250
09951-00410
09952-06010
SST: 09950-70010
09951-07100
NOTE: Do not tap the oil seal at an angle.

(b) Apply a light coat of MP grease to the oil pump seal lip.
NOTE: Keep the seal lip free of foreign matter.
