Oil Pump: Testing and Inspection

1NZ-FE LUBRICATION: OIL PUMP: INSPECTION

INSPECTION

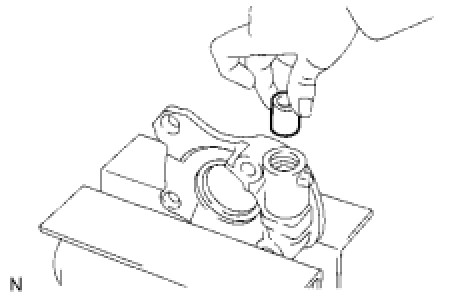

1. INSPECT OIL PUMP RELIEF VALVE
(a) Coat the oil pump relief valve with engine oil and check that it falls smoothly into the valve hole under its own weight.
If not, replace the oil pump relief valve. If necessary, replace the oil pump assembly.
2. INSPECT OIL PUMP ROTOR SET





(a) Install the 2 rotors with both of the marks facing the oil pump cover side.

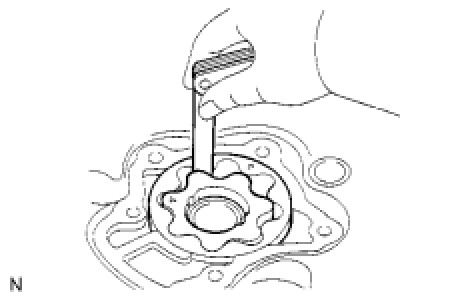

(b) Check the rotor tip clearance.
(1) Using a feeler gauge, measure the clearance between the drive and driven rotor tips.
Standard tip clearance:
0.060 to 0.180 mm (0.0024 to 0.0071 in.)
Maximum tip clearance:
0.28 mm (0.0110 in.)
If the tip clearance is greater than the maximum, replace the oil pump assembly.

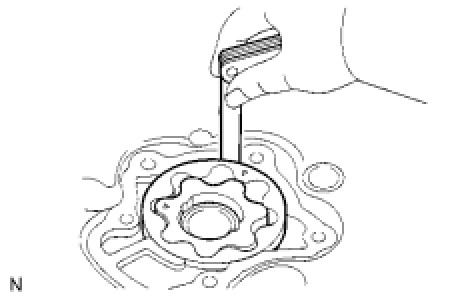

(c) Check the rotor body clearance.
(1) Using a feeler gauge, measure the clearance between the driven rotor and the oil pump body.
Standard body clearance:
0.250 to 0.325 mm (0.0098 to 0.0128 in.)
Maximum body clearance:
0.425 mm (0.0167 in.)
If the body clearance is greater than the maximum, replace the oil pump assembly.
