AIR CONDITIONING: BLOWER RESISTOR: INSTALLATION

INSTALLATION

1. INSTALL BLOWER RESISTOR





(a) Install the blower resistor with the 2 screws.
(b) Connect the connector.

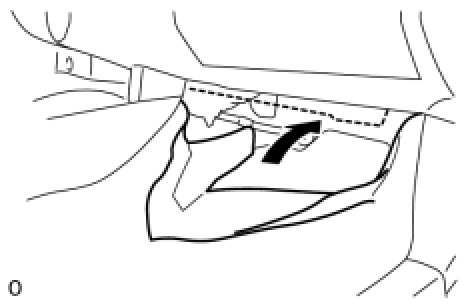

(c) Install the floor carpet.
2. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (for Hatchback) Installation
3. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (for Sedan) Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
