Removal

AIR CONDITIONING: BLOWER RESISTOR: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (for Hatchback) Removal
3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (for Sedan) Removal
4. REMOVE BLOWER RESISTOR

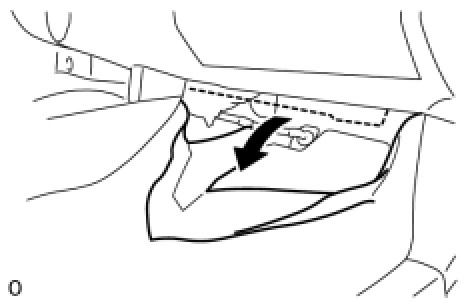

(a) Pull back the floor carpet.

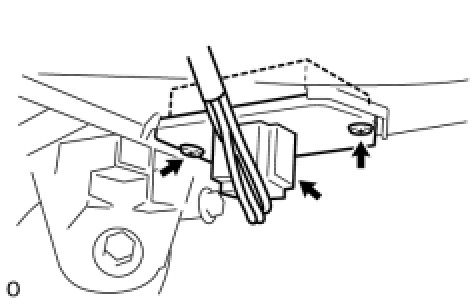

(b) Disconnect the connector.
(c) Remove the 2 screws and the blower resistor.
