Blower Motor Resistor: Testing and Inspection

AIR CONDITIONING: BLOWER RESISTOR: INSPECTION

INSPECTION





1. INSPECT BLOWER RESISTOR

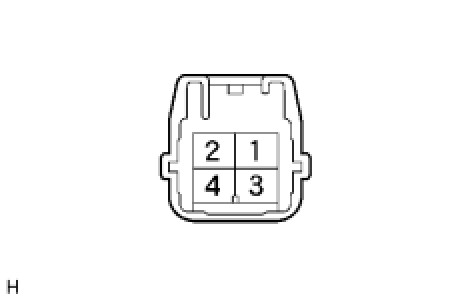

(a) Measure the resistance.

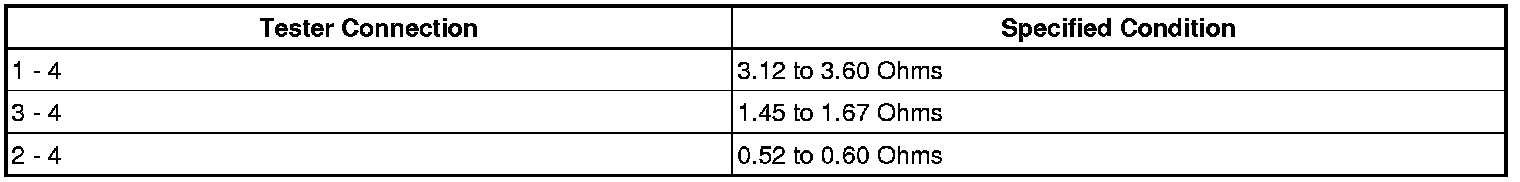

Standard resistance:





If the resistance value is not as specified, replace the blower resistor.
