AIR CONDITIONING: BLOWER UNIT (for Hatchback): INSTALLATION
INSTALLATION
1. INSTALL BLOWER UNIT

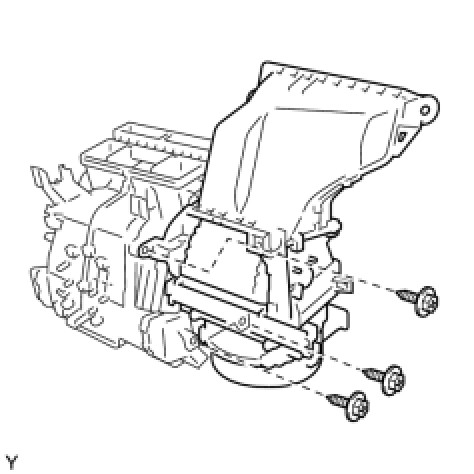

(a) Install the blower unit with the 3 screws.
2. INSTALL INSTRUMENT PANEL REINFORCEMENT Installation
3. INSTALL CONNECTOR NO. 2 HOLDER Installation
4. INSTALL MAIN BODY ECU Installation
5. INSTALL INSTRUMENT PANEL BRACE SUB-ASSEMBLY Installation
6. INSTALL REAR NO. 3 AIR DUCT (for Cold Area Specification Vehicles) Installation
7. INSTALL REAR NO. 1 AIR DUCT (for Cold Area Specification Vehicles) Installation
8. INSTALL REAR NO. 2 AIR DUCT (for Cold Area Specification Vehicles) Installation
9. INSTALL DEFROSTER NOZZLE ASSEMBLY Installation
10. INSTALL STEERING COLUMN ASSEMBLY Installation
11. INSTALL BRAKE PEDAL SUPPORT (for Manual Transaxle) Installation
12. INSTALL BRAKE MASTER CYLINDER PUSH ROD CLEVIS (for Manual Transaxle) Installation
13. INSTALL BRAKE PEDAL (for Automatic Transaxle) Installation
14. INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY Installation
15. INSTALL COLUMN HOLE COVER SILENCER SHEET Installation
16. INSTALL INSTRUMENT PANEL SUB REINFORCEMENT Installation
17. CONNECT POWER STEERING ECU Installation
18. INSTALL COMBINATION SWITCH ASSEMBLY Installation
19. INSTALL STEERING COLUMN COVER Installation
20. INSTALL STEERING WHEEL ASSEMBLY Installation
21. INSTALL STEERING PAD Installation
22. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation
23. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY Installation
24. CONNECT ANTENNA CORD SUB-ASSEMBLY Installation
25. INSTALL NO. 6 HEATER TO REGISTER DUCT ASSEMBLY Installation
26. INSTALL INSTRUMENT PANEL BOX Installation
27. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER Installation
28. INSTALL CONSOLE BOX ASSEMBLY REAR Installation
29. INSTALL CONSOLE BOX CARPET Installation
30. INSTALL CONSOLE BOX REAR COVER Installation
31. INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY (for Manual Transaxle) Installation
32. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
33. INSTALL COWL SIDE TRIM BOARD RH Installation
34. INSTALL COWL SIDE TRIM BOARD LH Installation
35. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH Installation
36. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH Installation
37. INSTALL FRONT DOOR SCUFF PLATE RH Installation
38. INSTALL FRONT DOOR SCUFF PLATE LH Installation
39. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation
40. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
41. INSTALL NO. 1 SWITCH HOLE BASE Installation
42. INSTALL FRONT PILLAR GARNISH RH Installation
43. INSTALL FRONT PILLAR GARNISH LH Installation
44. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
45. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
46. CONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY Installation
47. CONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY Installation
48. CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY Installation
49. INSTALL AIR CONDITIONER PANEL SUB-ASSEMBLY Installation
50. INSTALL RADIO TUNER OPENING COVER (w/o Radio Receiver) Installation
51. INSTALL RADIO RECEIVER ASSEMBLY Installation
52. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER Installation
53. INSTALL COMBINATION METER ASSEMBLY Installation
54. INSTALL INSTRUMENT CLUSTER FINISH NO.1 PANEL Installation
55. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
56. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
57. CONNECT HEATER WATER INLET HOSE A Installation
58. CONNECT HEATER WATER OUTLET HOSE A (FROM HEATER UNIT) Installation
59. INSTALL LIQUID TUBE SUB-ASSEMBLY Installation
60. INSTALL SUCTION TUBE SUB-ASSEMBLY Installation
61. INSTALL COWL TOP PANEL OUTER Installation
62. INSTALL NO. 2 COWL TO REGISTER DUCT SUB-ASSEMBLY Installation
63. INSTALL FRONT WIPER MOTOR AND LINK Installation
64. INSTALL COWL TOP VENTILATOR LOUVER LH Installation
65. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
66. INSTALL HOOD TO COWL TOP SEAL Installation
67. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
68. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
69. INSTALL FRONT WIPER ARM HEAD CAP Installation
70. ADD ENGINE COOLANT Service and Repair
71. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm)
72. CHECK SRS WARNING LIGHT
Diagnosis System
73. CHARGE REFRIGERANT Service and Repair
74. WARM UP ENGINE Service and Repair
75. CHECK FOR ENGINE COOLANT LEAK Testing and Inspection
76. CHECK FOR REFRIGERANT LEAK Service and Repair
77. POSITION FRONT WHEELS FACING STRAIGHT AHEAD
