AIR CONDITIONING: BLOWER UNIT (for Sedan): DISASSEMBLY

DISASSEMBLY





1. REMOVE NO. 1 AIR DUCT SUB-ASSEMBLY

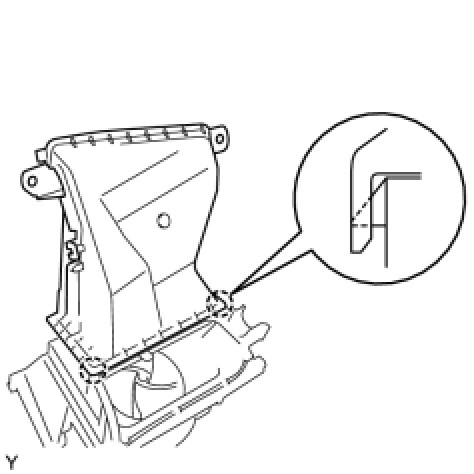

(a) Disengage the 2 claws and remove the air duct.





2. REMOVE AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY

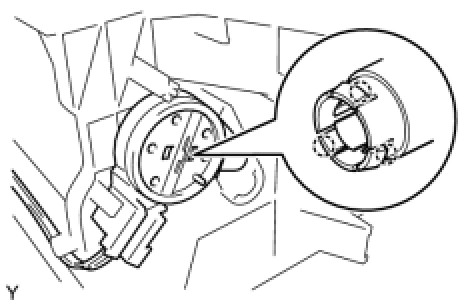

(a) Disengage the 3 claws and remove the air inlet damper control cable.





3. REMOVE BLOWER MOTOR
(a) Remove the 3 screws and the blower motor.





4. REMOVE BLOWER RESISTOR

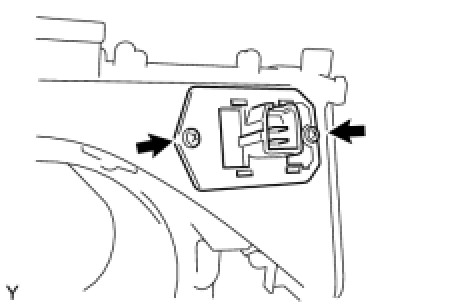

(a) Remove the 2 screws and the blower resistor.





5. REMOVE AIR FILTER CASE

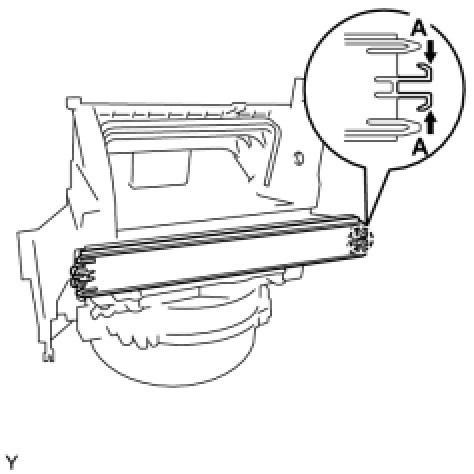

(a) Pinch portion A to disengage the claw and remove the air filter case.





6. REMOVE CLEAN AIR FILTER

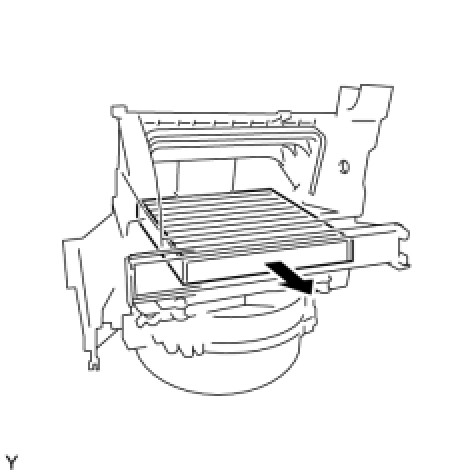

(a) Remove the clean air filter from the blower assembly.
