Home >> Toyota >> 2009 >> Yaris L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser HVAC >> Service and Repair >> Condenser (for Hatchback) >> Components

Components








AIR CONDITIONING: CONDENSER (for Hatchback): COMPONENTS

COMPONENTS

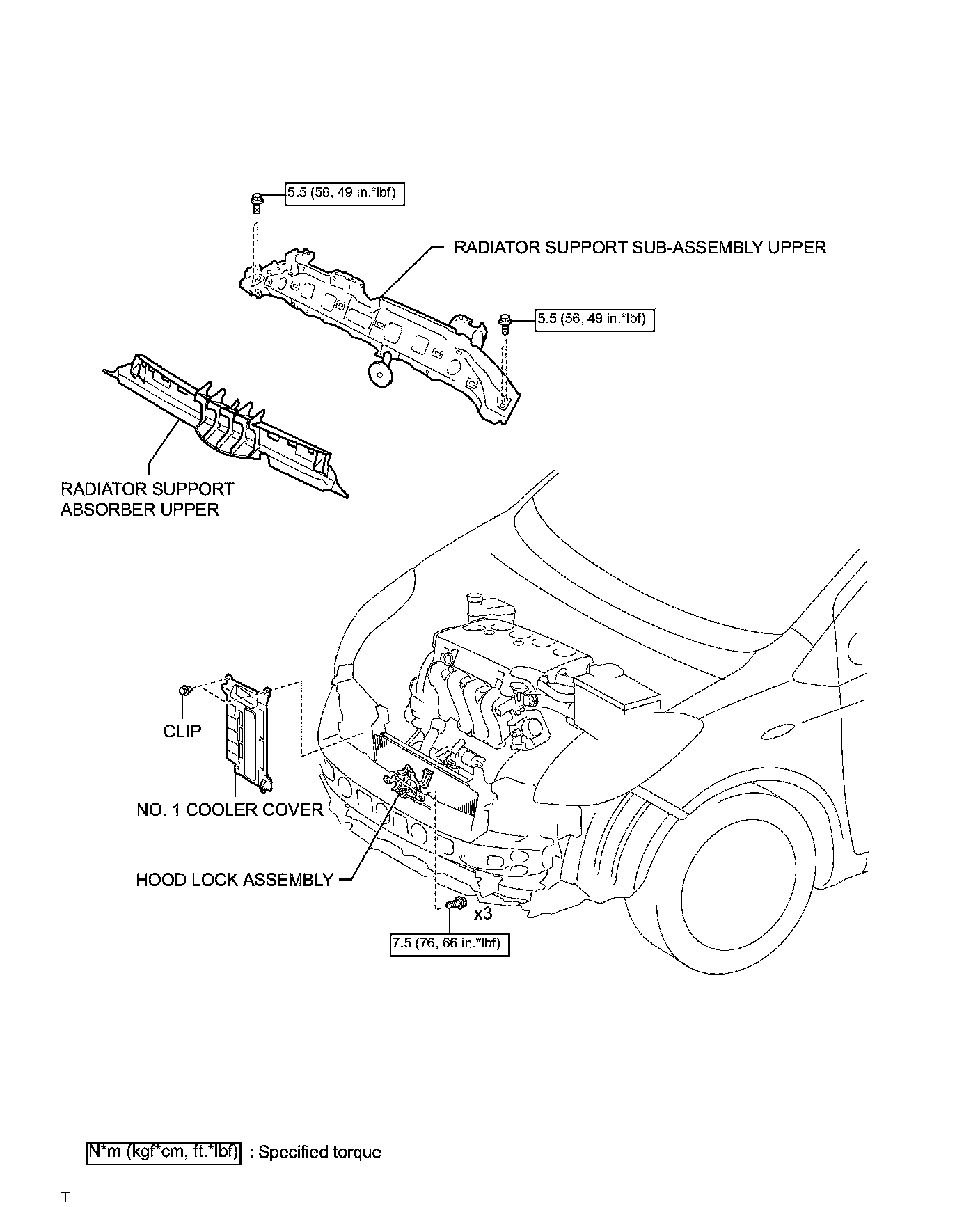

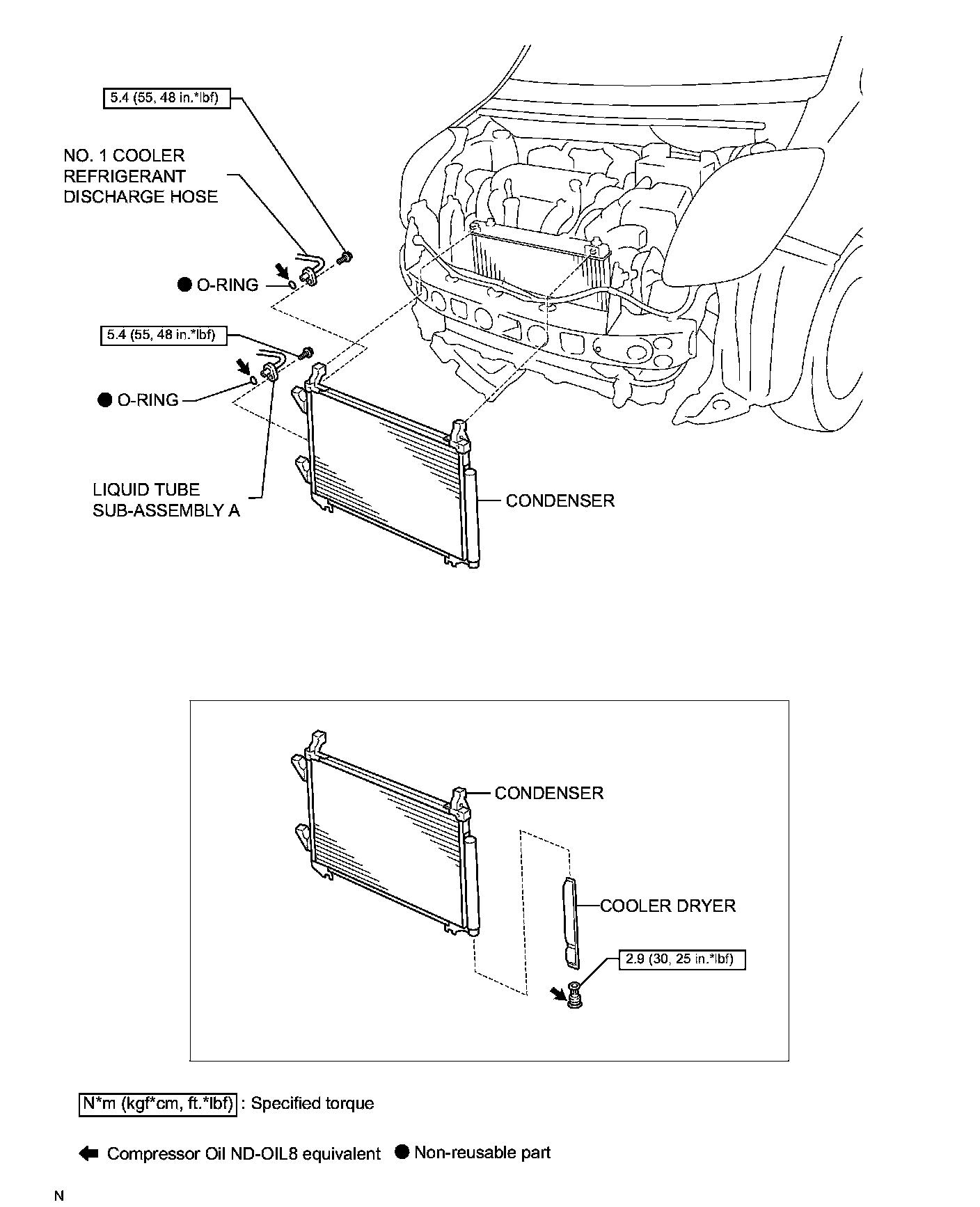

ILLUSTRATION
