Disassembly

AIR CONDITIONING: CONDENSER (for Hatchback): DISASSEMBLY

DISASSEMBLY

1. REMOVE COOLER DRYER





(a) Using a 14 mm straight hexagon wrench, remove the cap from the modulator.

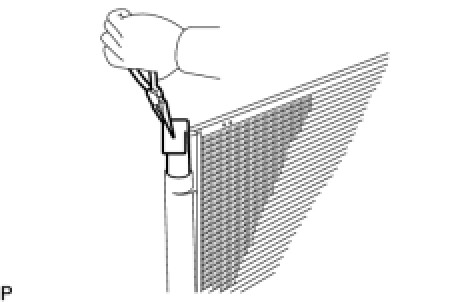

(b) Using pliers, remove the cooler dryer.
