Removal

AIR CONDITIONING: CONDENSER (for Sedan): REMOVAL

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE FRONT SPOILER COVER Removal
4. REMOVE FRONT BUMPER COVER Removal
5. REMOVE NO. 1 COOLER COVER Removal
6. SEPARATE HOOD LOCK ASSEMBLY (w/ Theft Deterrent System) Removal
7. SEPARATE HOOD LOCK ASSEMBLY (w/o Theft Deterrent System) Removal
8. REMOVE RADIATOR SUPPORT SUB-ASSEMBLY UPPER Removal





9. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
(a) Remove the bolt and disconnect the discharge hose from the cooler condenser.
(b) Remove the O-ring from the discharge hose.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.





10. DISCONNECT LIQUID TUBE SUB-ASSEMBLY A
(a) Remove the bolt and disconnect the liquid tube from the cooler condenser.
(b) Remove the O-ring from the liquid tube.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

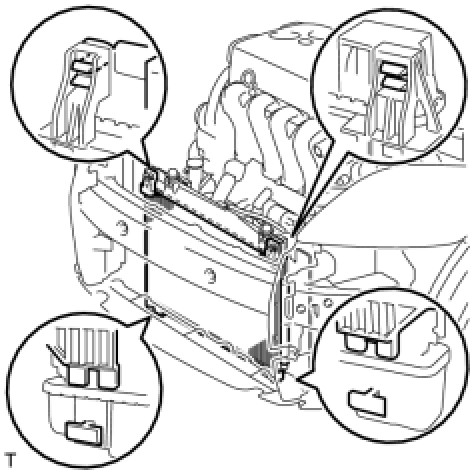

11. REMOVE CONDENSER
(a) Disengage the 2 claws and remove the condenser from the vehicle.
NOTE: Do not damage the condenser or radiator when removing the condenser.
