Disassembly

AIR CONDITIONING: AIR CONDITIONING PANEL (for Hatchback): DISASSEMBLY

DISASSEMBLY

1. REMOVE NO. 3 HEATER CONTROL KNOB

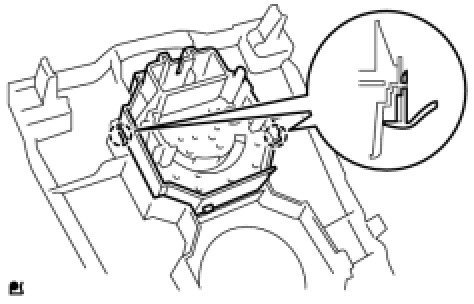

(a) Disengage the 2 claws and remove the NO. 3 heater control knob.

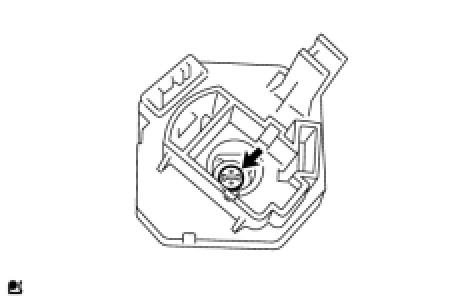

(b) Remove the bulb.
2. REMOVE HEATER CONTROL BASE SUB-ASSEMBLY

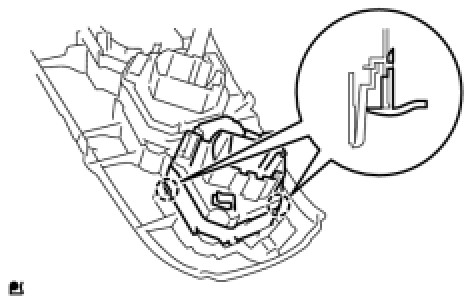

(a) Disengage the 2 claws and remove the heater control base.

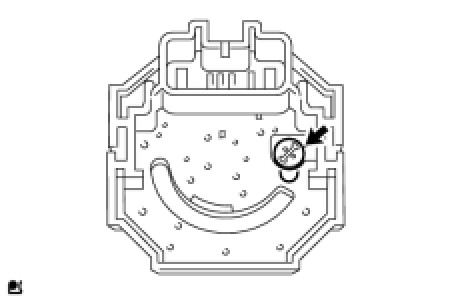

(b) Remove the bulb.
3. REMOVE HEATER CONTROL SUB-ASSEMBLY

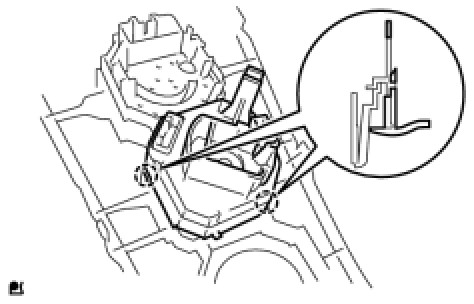

(a) Disengage the 2 claws and remove the heater control.

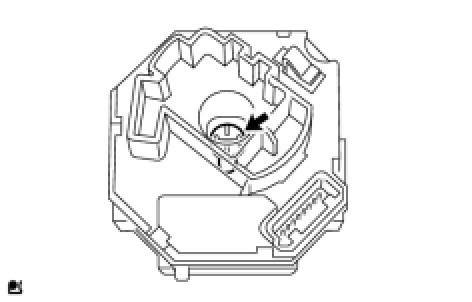

(b) Remove the bulb.
