Installation

AIR CONDITIONING: AIR CONDITIONING PANEL (for Sedan): INSTALLATION

INSTALLATION





1. CONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY

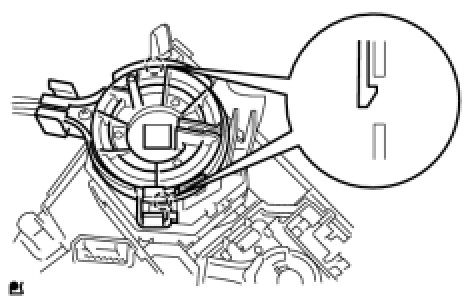

(a) Engage the 2 claws and connect the air inlet damper control cable.





2. CONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY

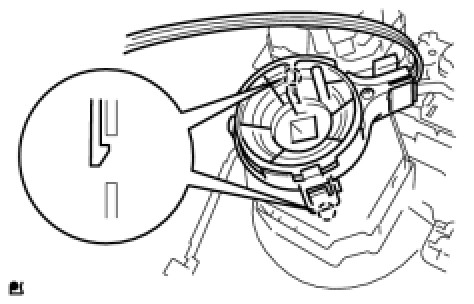

(a) Engage the 2 claws and connect the defroster damper control cable.





3. CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY

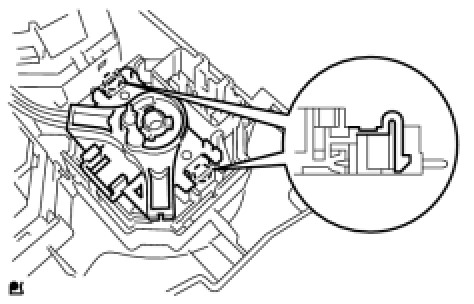

(a) Engage the 2 claws and connect the air mix control cable clamp.
(b) Connect the air mix damper control cable to the clamp.
4. INSTALL AIR CONDITIONING PANEL ASSEMBLY

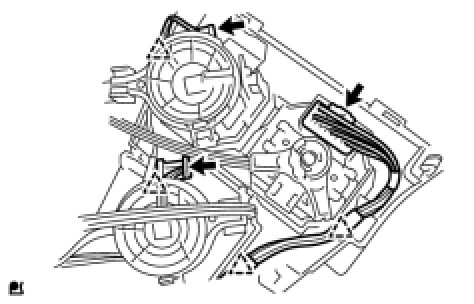

(a) Connect the 3 connectors and the 4 clamps.





(b) Engage the 4 clips and 2 claws and install the air conditioning panel.





5. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER SUB-ASSEMBLY

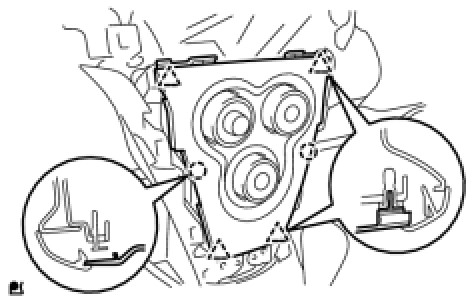

(a) Engage the 4 clips and 2 claws and install the instrument cluster finish panel.
6. INSTALL RADIO RECEIVER ASSEMBLY (for Integrated with Panel) Installation
7. INSTALL INSTRUMENT CLUSTER FINISH NO.1 PANEL Installation
8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
9. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
10. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
